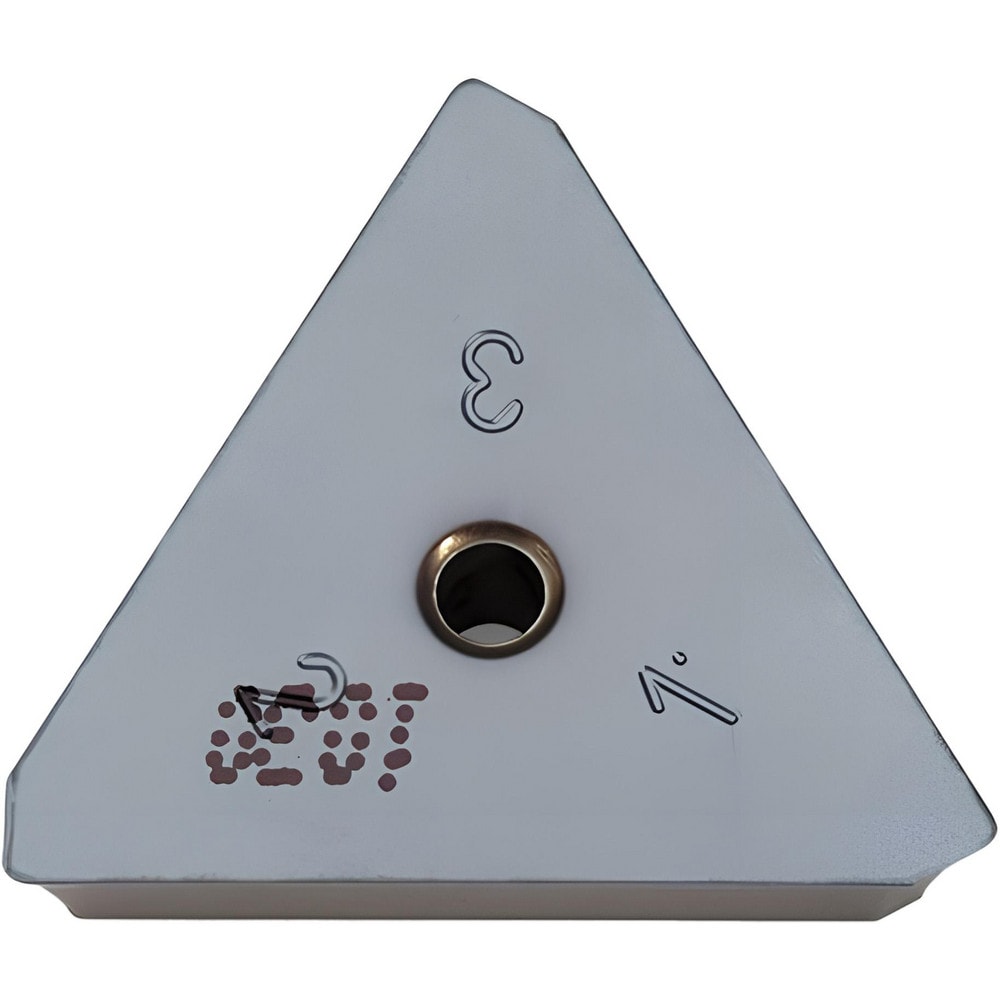

Brand: Ingersoll Cutting Tools / Part #: 5840307
Item #: 67314039
Brand: Ingersoll Cutting Tools
Model #: 5840307
Product Specifications
| Insert Style | TPKN |
| Insert Size Code | 2204 |
| Insert Material | Carbide |
| Manufacturer Grade | IN5015 |
| Thickness (Inch) | 3/16 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/64 |
| Insert Hand | Right Hand |
| Series | TPKN |
| Coating Process | CVD |
| Maximum Depth of Cut (Decimal Inch) | 0.5900 |
| Number Of Cutting Edges | 3 |
| Insert Shape | Triangle |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K |
| Ansi Code | TPKN2204PDTR |
| Rake Angle | 11.000 |
| Manufacturers Catalog Number | TPKN2204PDTR IN5015 |
| Chip Breaker | Flat Top |
| Cutting Direction | Right Hand |
| Shape | Triangle |
| Length of Cut (mm) | 14.9900 |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiCN; TiN |
| Included Angle Degree | 60 |
| Multi-Use Tool | No |
