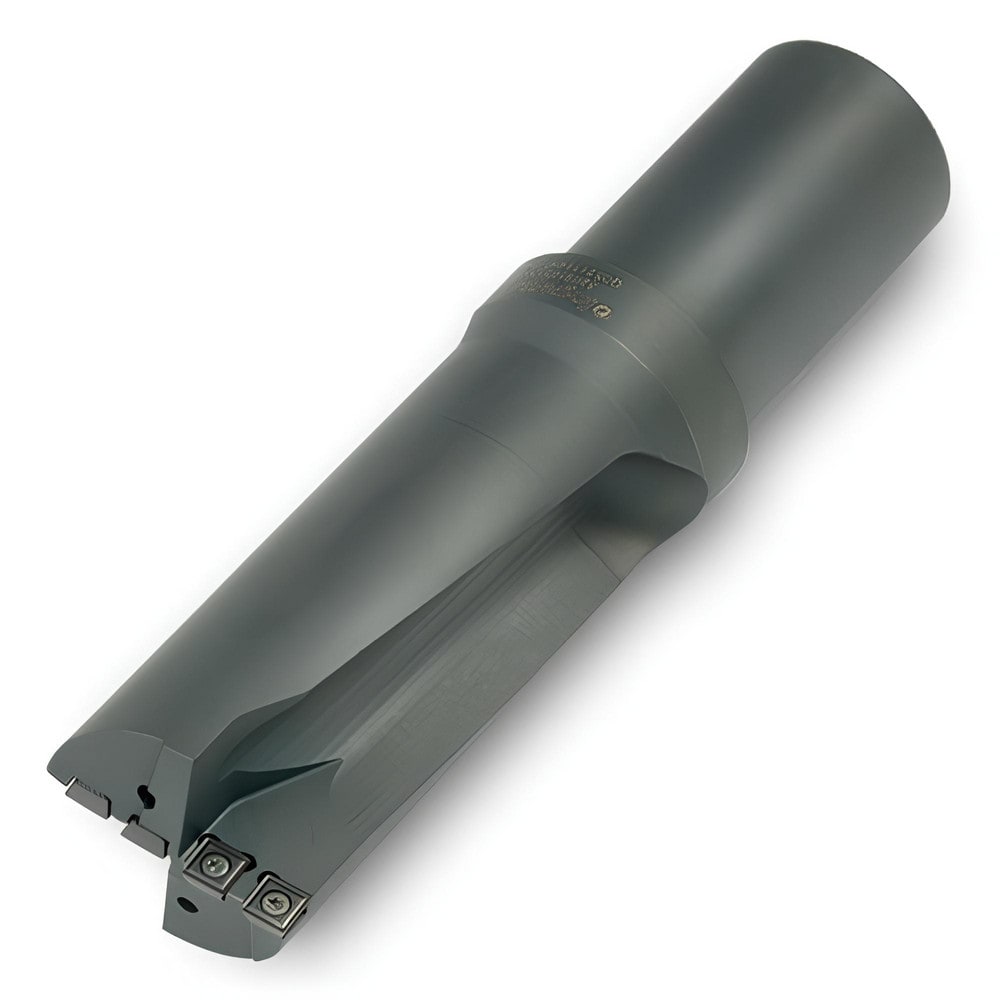

Brand: Ingersoll Cutting Tools / Part #: 3224049
Item #: 96210208
Brand: Ingersoll Cutting Tools
Model #: 3224049
Product Specifications
| Maximum Drill Depth | 11.0000 in |
| Drill Depth by Diameter Ratio | 4xD |
| Maximum Depth of Cut (Decimal Inch) | 11.0000 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 2 |
| Cutting Direction | Right Hand |
| Drill Body Length to Flange (Decimal Inch) | 12.5000 |
| Toolholder Style | Q069 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 2.7500 |
| Overall Length (Decimal Inch) | 15.7500 |
| Overall Length | 15.75 |
| Through Coolant | Yes |
| Series | Q |
| Flute Length (Decimal Inch) | 11.0000 |
| Shank Length (Decimal Inch) | 3.2500 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Flute Type | Slow Spiral |
| Maximum Cutting Diameter (Decimal Inch) | 2.7500 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
