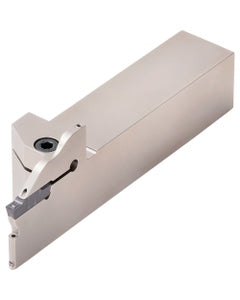

KGDR 124T20JCT, Coolant-Through External Grooving Toolholder
Item #: KY96THT05487
Brand: Kyocera Precision Tools
Model #: THT05487
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 0.1575″ |
| Overall Length (OAL) | 5″ |
| Cutting Width Maximum (CWX) | 0.1969″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 0.7874″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Shank Height (H) | 3/4″ |
| Application | | Cut-Off | Ext. Grooving | |
| Shank Width (B) | 3/4″ |
| Body Material | Steel |
| Functional Width (WF) | 0.683″ |
| Series/List # | KGDJ |
| Functional Length (LF) | 5″ |
| Measurement Type | Inch |
| Head Length (LH) | 1.4961″ |
| Shank Length (LS) | 3.5039″ |
