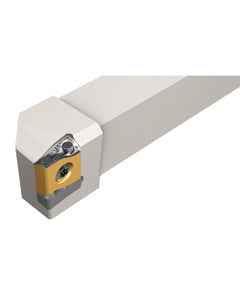

SLANR 20-15 TANG
Item #: EH3602119
Brand: Iscar
Model #: 3602119
| Product Specifications | |
|---|---|
| Shank Height (H) | 1-1/4″ |
| Rake Angle Axial (GAMP) | -6 Degrees |
| Shank Width (B) | 1-1/4″ |
| Rake Angle Radial (GAMF) | -6 Degrees |
| Functional Length (LF) | 6″ |
| Body Material | Steel |
| Head Length (LH) | 1.37″ |
| Cutting Position | External |
| Functional Width (WF) | 1.46″ |
| Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Right Hand |
| Measurement Type | Inch |
| Master Insert Identification (MIID) | LNMX 15 |
| Style | SLANR 20-15 TANG |
| Application | | Ext. Tangential 93° Approach | |
| Insert Style | 6″ |
