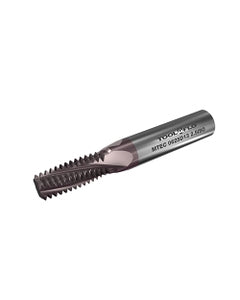

MTEC 0250C02 0.5ISO AC22
Item #: FG312464500
Brand: ToolFlo
Model #: 2464500
| Product Specifications | |
|---|---|
| Thread Pitch (TP) | 0.5 mm |
| Flute Helix Angle (FHA) | 15 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1/4″ |
| Cutting Edge Material | Carbide |
| Cutting Diameter (DC) | 0.087″ |
| Cutting Position | INT |
| Functional Length (LF) | 2-1/2″ |
| Measurement Type | Inch |
| Overall Length (OAL) | 2-1/2″ |
| Grade | AC22 |
| Flute Count (NOF) | 3 |
| Tool Type | Solid carbide thread mills |
| Shank Type | Round |
| Depth of Cut Maximum (APMX) | 0.21″ |
| Coating | TiAlN |
| Body Material | Carbide |
| Application | | Internal Thread Milling | |
| Connection Code Machine Side (CCMS) | Cylindrical |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | |
| Thread Form Type (THFT) | M60 |
