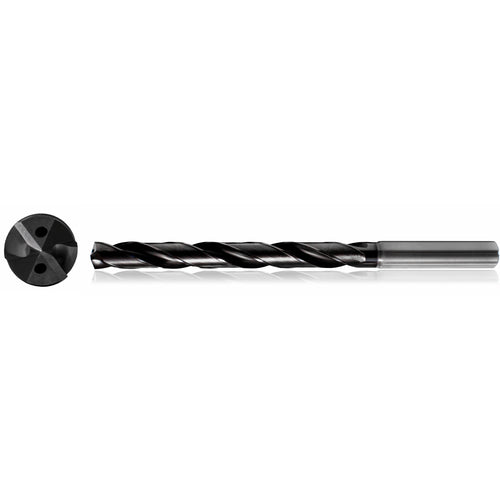

#12 Dia. × 6 mm Shank × 44 mm Flute Length × 82 mm OAL, 5xD, TiAlCN, 2 Flute, Coolant Thru, h6, Cylindrical, Solid Carbide Drill Series/List #NG11
Item #: MU061125828
Brand: Morse Cutting Tools
Model #: 1125828
| Product Specifications | |
|---|---|
| Drill Bit Size / Cutting Diameter (DC) | #12 |
| Shank Standard | h6 |
| Decimal Equivalent | 0.189″ |
| Tool Type | High Performance Carbide Drill |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | #12 |
| Flute Type | Helical |
| Length Group | 5xD |
| Measurement Type | Wire Gauge |
| Coating | TiAlCN |
| Series/List # | DBIC27 |
| Applicable Material | Stainless Steel | Super-Alloys / Titanium |
| Usable Length (LU) | 44 mm |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Length Chip Flute (LCF) | 44 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 82 mm |
| Point Angle (SIG) | 30 Degrees |
| Flute Count (NOF) | 2 |
| Functional Length (LF) | 44 mm |
| Feature | DOUBLE-MARGIN DRILL, COOLANT THRU |
| Flute Helix Angle (FHA) | 30 Degrees |
| Cutting Direction (HAND) | Right Hand |
| Shank Type | Cylindrical |
| Body Material | Carbide |
