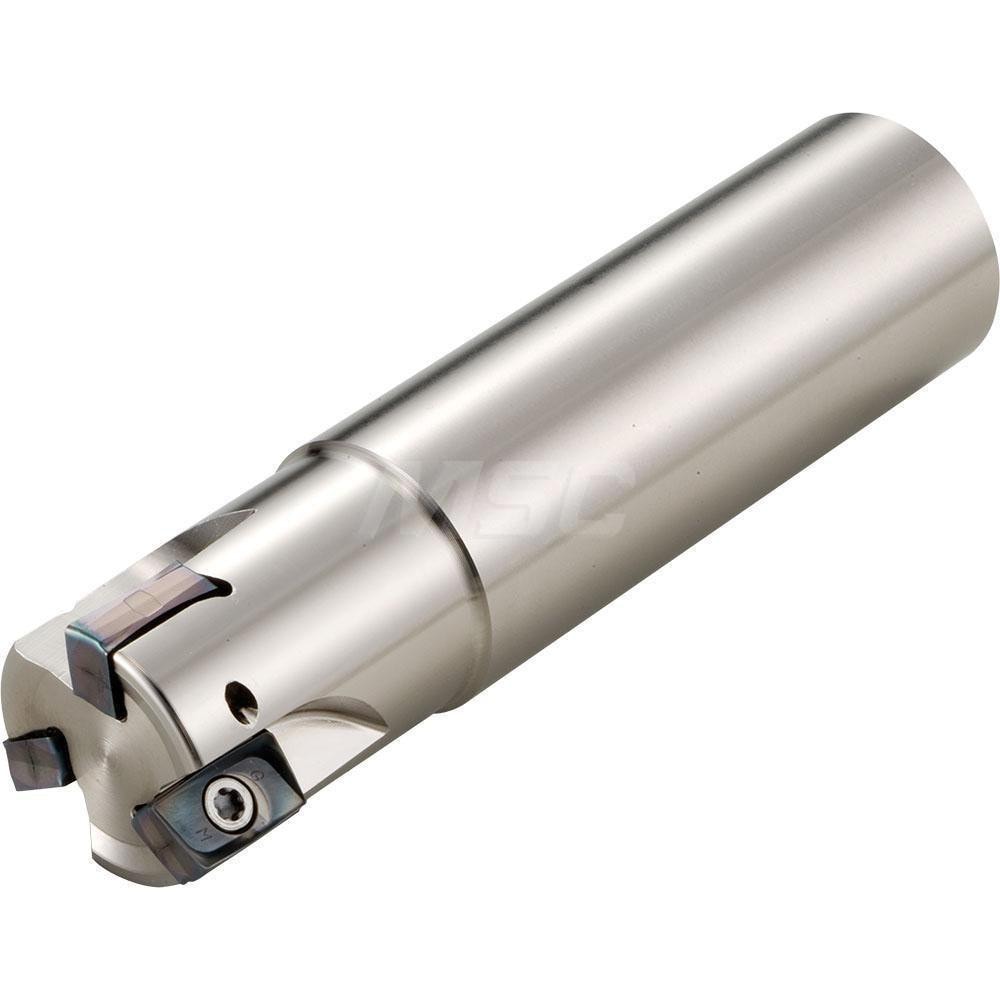

Brand: Kyocera / Part #: THN05103
Item #: 50424449
Brand: Kyocera
Model #: THN05103
Product Specifications
| Maximum Cutting Diameter (mm) | 15.88 |
| Maximum Cutting Diameter (Inch) | 5/8 |
| Maximum Depth of Cut (Decimal Inch) | 0.3930 |
| Cutter Style | MEW |
| Shank Type | Weldon Flat |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Shank Diameter (mm) | 15.88 |
| Insert Holding Method | Screw |
| Overall Length (Decimal Inch) | 3.0000 |
| Tool Material | Steel |
| Series | M-Four |
| Lead Angle | 90 |
| Shank Length (Decimal Inch) | 1.9540 |
| Head Length (Decimal Inch) | 1.0460 |
| Maximum RPM | 43900 |
| Tool Application | Facing; Plunging; Shouldering; Slotting |
| Insert Compatibility | LOMU 1004..ER-GM; LOMU 1004..ER-GH; LOMU 1004..ER-SM |
| Number Of Flutes | 2 |
| Usable Length (Decimal Inch) | 3.0000 |
| Number Of Cutter Inserts | 2 |
| Coolant Through | Yes |
