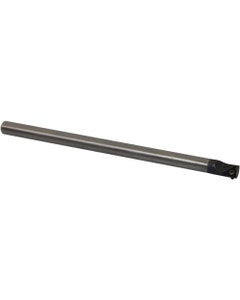

C10XSTXPL0911 Left-Hand, Positive Rake, Boring Bar
Item #: KY96THC08353
Brand: Kyocera Precision Tools
Model #: THC08353
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 10 mm |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 164 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 164 mm |
| Rake Angle Axial (GAMP) | 5 Degrees |
| Head Length (LH) | 17 mm |
| Rake Angle Radial (GAMF) | -10 Degrees |
| Shank Height (H) | 9 mm |
| Series/List # | GPBB |
| Shank Length (LS) | 147 mm |
| Style | C...STXP |
| Functional Width (WF) | 5.6 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | | TPGT1815 | TPMT1815 | TPMX1815 | TPEH1815 | TPGH1815 | TPGB1815 | TPMH1815 | |
| Weight of Item (WT) | 0.5093 |
| Minimum Bore Diameter (DMIN) | 11 mm |
