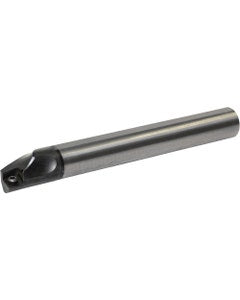

E20SSCLPR0922A12 Right-Hand, Positive Rake, Coolant-Through Boring Bar
Item #: KY96THC13697
Brand: Kyocera Precision Tools
Model #: THC13697
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 20 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 125 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 125 mm |
| Rake Angle Axial (GAMP) | 5 Degrees |
| Head Length (LH) | 32 mm |
| Rake Angle Radial (GAMF) | -2 Degrees |
| Shank Height (H) | 19 mm |
| Series/List # | DYNB |
| Shank Length (LS) | 93 mm |
| Style | E...SCLP-A |
| Functional Width (WF) | 11 mm |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | | CPMT32 | CPMH32 | CPMB32 | CPGB32 | |
| Weight of Item (WT) | 1.032 |
| Minimum Bore Diameter (DMIN) | 22 mm |
