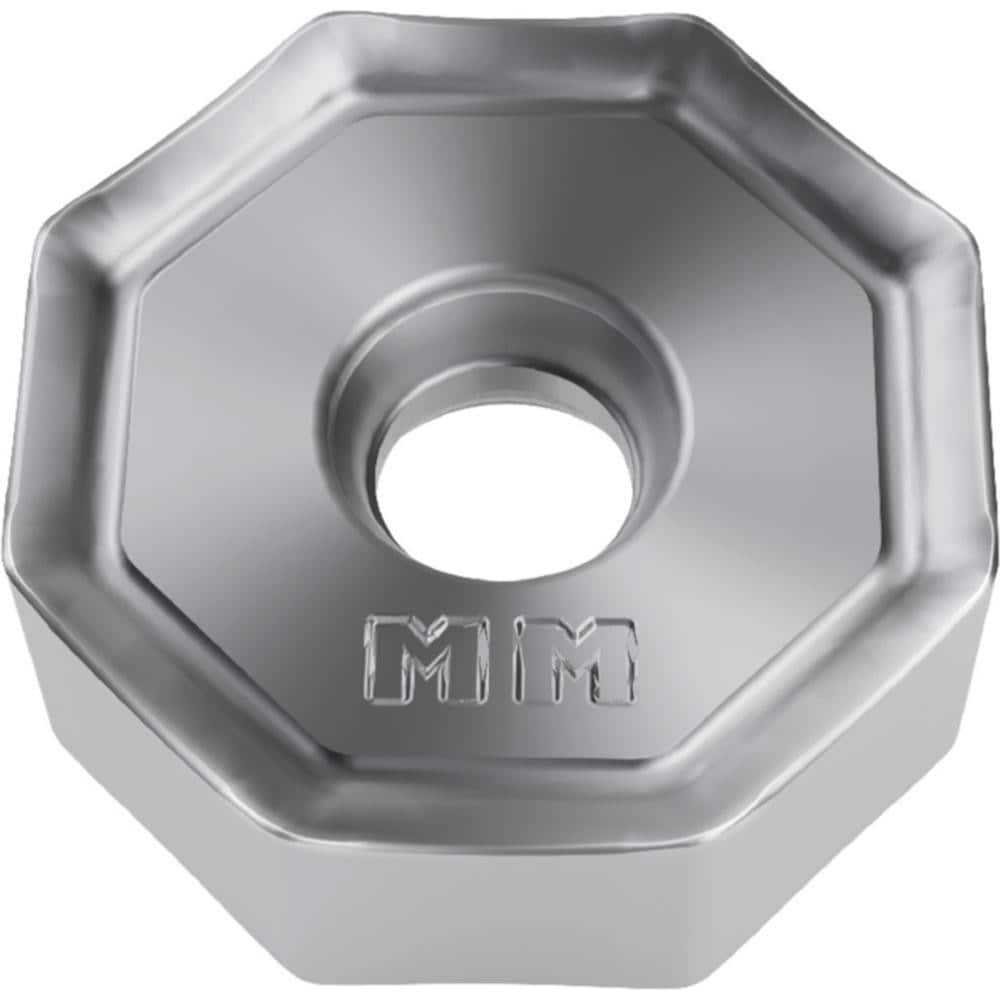

Brand: Widia / Part #: 3778942
Item #: 94113099
Brand: Widia
Model #: 3778942
Product Specifications
| Insert Style | ONGX |
| Insert Size Code | 0605 |
| Insert Size | 06 |
| Insert Material | Carbide |
| Manufacturer Grade | WU20PM |
| Inscribed Circle (Decimal Inch) | 0.6646 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Corner Radius (Inch) | 3/64 |
| Insert Hand | Neutral |
| Relief Angle | 0.000 |
| Series | M1600 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1831 |
| Maximum Depth of Cut (Decimal Inch) | 0.2706 |
| Number Of Cutting Edges | 16 |
| Insert Shape | Octagon |
| Rake | Negative |
| Secondary Workpiece Material | Hard Material; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Secondary Workpiece Material Code | P; S; H; K; M |
| Ansi Code | ONGX060512ANSNMM |
| Iso Code | ONGX060512ANSNMM |
| Manufacturers Catalog Number | ONGX060512ANSNMM |
| Cutter Series Compatibility | M1600 ON*X0605 |
| Chip Breaker | MM |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Octagon |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiAlN |
| Included Angle Degree | 135 |
| Width (Decimal Inch - 4 Decimals) | 0.6646 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2155 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6646 |
