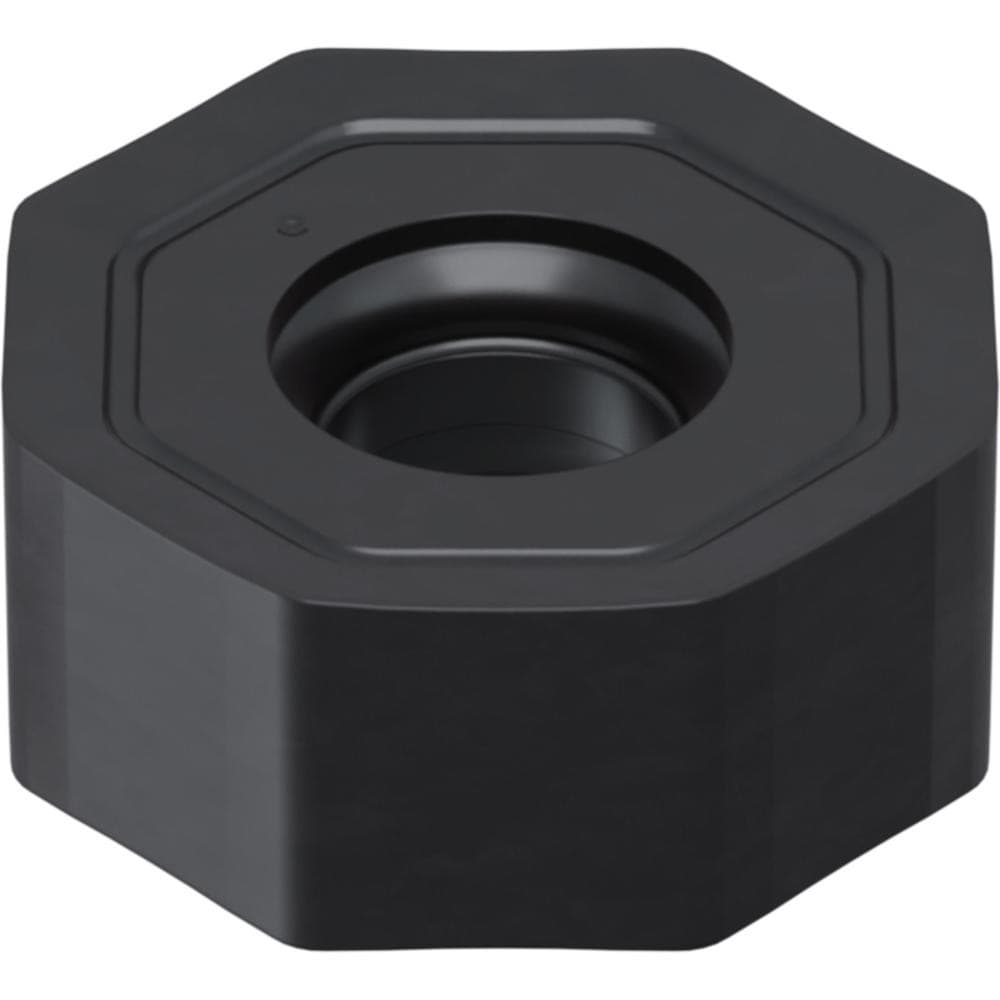

Brand: Widia / Part #: 6095310
Item #: 94036548
Brand: Widia
Model #: 6095310
Product Specifications
| Insert Style | ONGX |
| Insert Size Code | 04T3 |
| Insert Size | 04 |
| Insert Material | Carbide |
| Manufacturer Grade | WK15CM |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Inscribed Circle (mm) | 10.00 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Neutral |
| Relief Angle | 0.000 |
| Series | M1600 |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.1437 |
| Maximum Depth of Cut (Decimal Inch) | 0.1616 |
| Number Of Cutting Edges | 16 |
| Insert Shape | Octagon |
| Rake | Negative |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Ansi Code | ONGX04T308ANSNMM |
| Iso Code | ONGX04T308ANSNMM |
| Manufacturers Catalog Number | ONGX04T308ANSNMM |
| Cutter Series Compatibility | M1600-F ON*04T3 |
| Chip Breaker | MM |
| Cutting Direction | Neutral |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Octagon |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Included Angle Degree | 135 |
| Length | 10.00 |
| Width (Decimal Inch - 4 Decimals) | 0.3937 |
| Width (Mm - 2 Decimals) | 10.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.1564 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.3937 |
