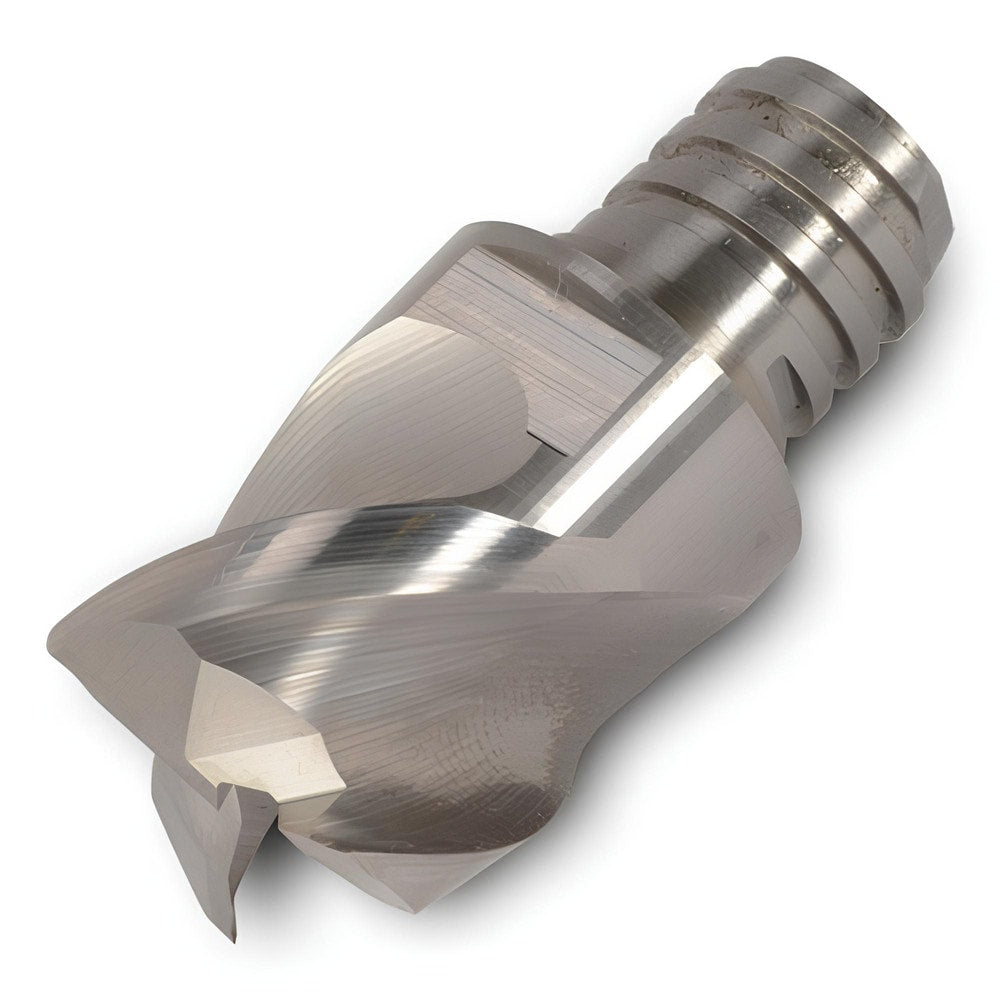

Brand: Ingersoll Cutting Tools / Part #: 5840415
Item #: 95184370
Brand: Ingersoll Cutting Tools
Model #: 5840415
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6299 |
| Mill Diameter (mm) | 16.00 |
| Length of Cut (mm) | 10.0000 |
| Connection Type | T10 |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Center Cutting | Center Cutting |
| Flute Type | Helical |
| Helix Angle | 45 |
| Helix Style | High |
| Maximum Helix Angle | 45 |
| Minimum Helix Angle | 45 |
| Series/List | 46J |
| Variable Helix | No |
| Pitch | Normal |
| End Type | Square End |
| Chipbreaker | No |
| Shank Type | Modular Connection |
| Extended Reach | NonExtendedReach |
| Single Or Double End | Single |
| Manufacturers Grade | IN05S |
| Material Application | Aluminum |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.3937 |
| Variable Index | No |
| Manufacturers Catalog Number | 46J16010TRRD21 |
| Number Of Flutes | 3 |
| Finish Coating | Bright/Uncoated |
