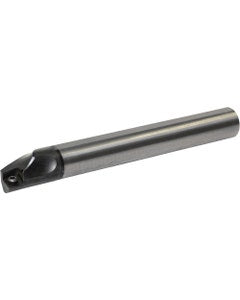

E10XSCLCR3A Right-Hand, Positive Rake, Coolant-Through Boring Bar
Item #: KY96THC89061
Brand: Kyocera Precision Tools
Model #: THC89061
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.6252″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 8.7″ |
| Coolant Supply Property (CSP) | Coolant Thru |
| Overall Length (OAL) | 8.7″ |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 1.1024″ |
| Rake Angle Radial (GAMF) | -10 Degrees |
| Shank Height (H) | 0.5858″ |
| Series/List # | DYNB |
| Shank Length (LS) | 7.5976″ |
| Style | E...SCLC-A |
| Functional Width (WF) | 0.3543″ |
| Measurement Type | Inch |
| Master Insert Identification (MIID) | | CCGT325 | CCMT325 | CCET325 | CCGW325 | CCMW325 | |
| Weight of Item (WT) | 1.31 |
| Minimum Bore Diameter (DMIN) | 0.7701″ |
