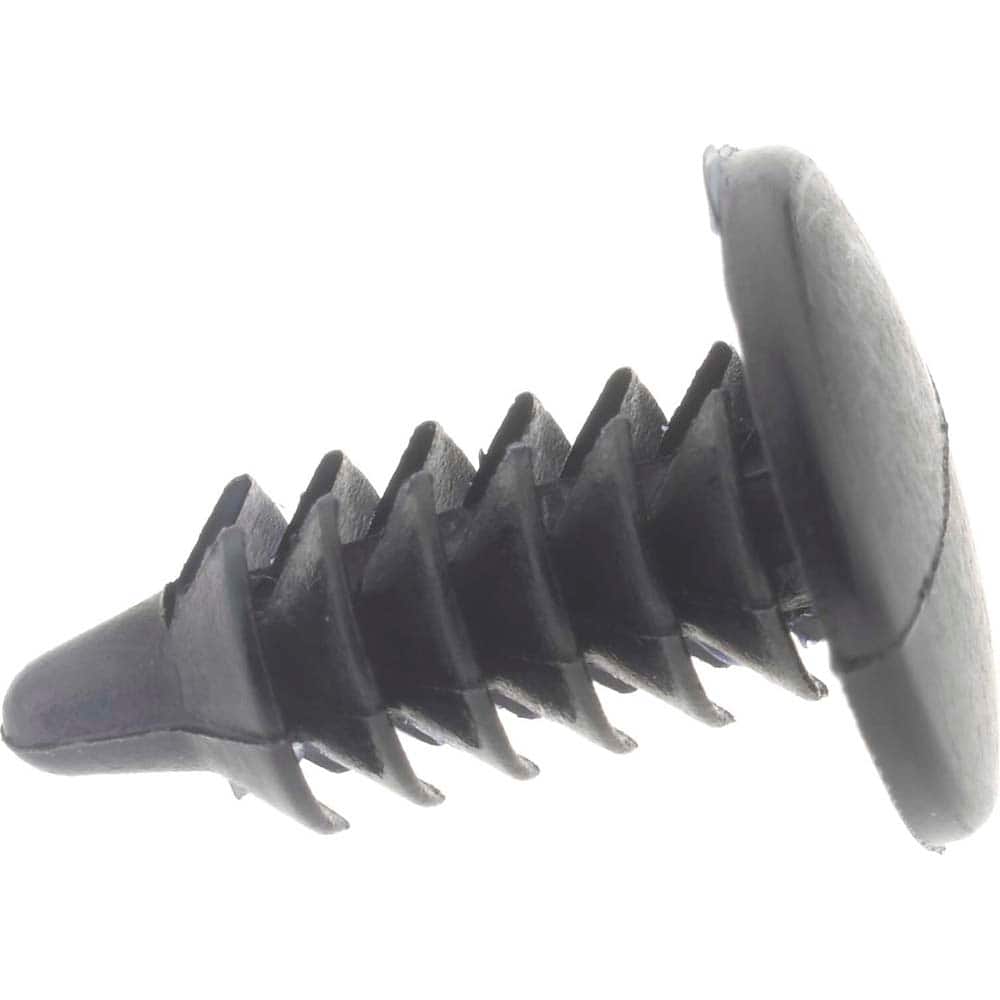

Made in USA - Panel Rivets Type: Panel Rivet Shank Type: Ratchet
Item #: 19286830
Brand: Made in USA
Model #:
Features and Benefits
Panel rivets are inserted into punched or predrilled holes in thin materials. They are push-in fasteners that resist shaking, vibration, loosening and abrasion.
Ratchet shanks feature two shanks that mate to create a secure connection. They are ideal for applications that require a rivet head on both sides of the workpiece.
Product Specifications
Panel Rivets; Type: Panel Rivet ; Shank Type: Ratchet ; Head Type: Round ; Minimum Hole Diameter (Decimal Inch): 0.1560 ; Maximum Hole Diameter (Decimal Inch): 0.1560 ; Minimum Material Thickness (Decimal Inch): 0.0300
| Type | Panel Rivet |
| Shank Type | Ratchet |
| Head Type | Round |
| Minimum Hole Diameter (Decimal Inch) | 0.1560 |
| Maximum Hole Diameter (Decimal Inch) | 0.1560 |
| Minimum Material Thickness (Decimal Inch) | 0.0300 |
| Maximum Material Thickness (Decimal Inch) | 0.2340 |
| Head Diameter (Decimal Inch) | 0.3600 |
| Head Height (Decimal Inch) | 0.0450 |
| Length Under Head (Decimal Inch) | 0.4320 |
| Overall Length (Decimal Inch) | 0.47900 |
| Body Diameter (Decimal Inch) | 0.1800 |
| Color | Black |
| Material | Nylon |
