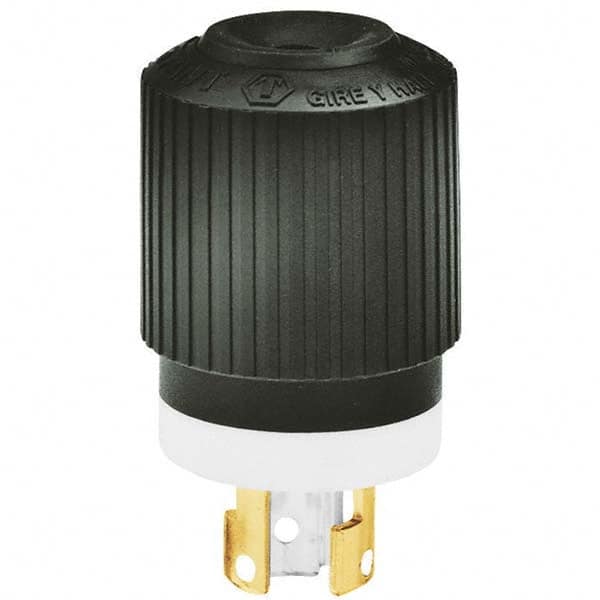

Bryant Electric - Twist Lock Plugs & Connectors Connector Type: Plug Grade: Industrial
Item #: 10091684
Brand: Bryant Electric
Model #: 7568NP
Product Specifications
Twist Lock Plugs & Connectors; Connector Type: Plug ; Grade: Industrial ; NEMA Configuration: NonNEMA ; Amperage: 10 ; Voltage: 250 V ; Number of Poles: 3
| Connector Type | Plug |
| Grade | Industrial |
| NEMA Configuration | NonNEMA |
| Amperage | 10 |
| Voltage | 250 V |
| Number of Poles | 3 |
| Number of Wires | 3 |
| Color | Black/White |
| Resistance Features | Impact Resistance |
| Maximum Cord Diameter (Decimal Inch) | 0.6600 |
| Maximum Cord Diameter (mm) | 16.76 |
| Minimum Cord Diameter (mm) | 7.62 |
| Minimum Cord Diameter (Decimal Inch) | 0.3000 |
| Number of Phases | 1 |
| Grounding Style | Ungrounded |
| Material | Composite |
| Standards Met | UL Listed; CSA Certified |
