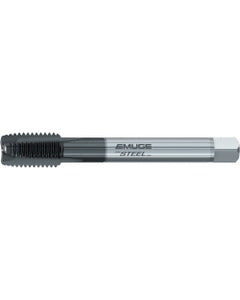

1/2″ -13 × 4.331″ OAL, HSS-E, GLT-1, 3B Tolerance Class, 4P-5P Chamfer, Left Hand, Plug Style, Spiral Point Tap
Item #: ER4520K5605013
Brand: EMUGE-FRANKEN
Model #: CU20K560.5013
| Product Specifications | |
|---|---|
| Thread Size | 1/2″ - 13 |
| Standard | | DIN | ANSI | |
| Thread Diameter Size (TDZ) | 1/2″ |
| Tool Type | Rekord B |
| Threads per Inch (TPI) | 13 |
| Applicable Material | | Steel | Aluminum / Non-Ferrous Materials | |
| Thread Tolerance Class (TCTR) | | 3B | |
| Application | Through Hole |
| Overall Length (OAL) | 4.331″ |
| Connection Diameter Machine Side (DCONMS) | 0.367″ |
| Chamfer | 4P-5P |
| Style | Plug |
| Coating | GLT-1 |
| Cutting Direction (HAND) | Left Hand |
| Cutting Edge Material | HSSE |
| Measurement Type | Inch |
