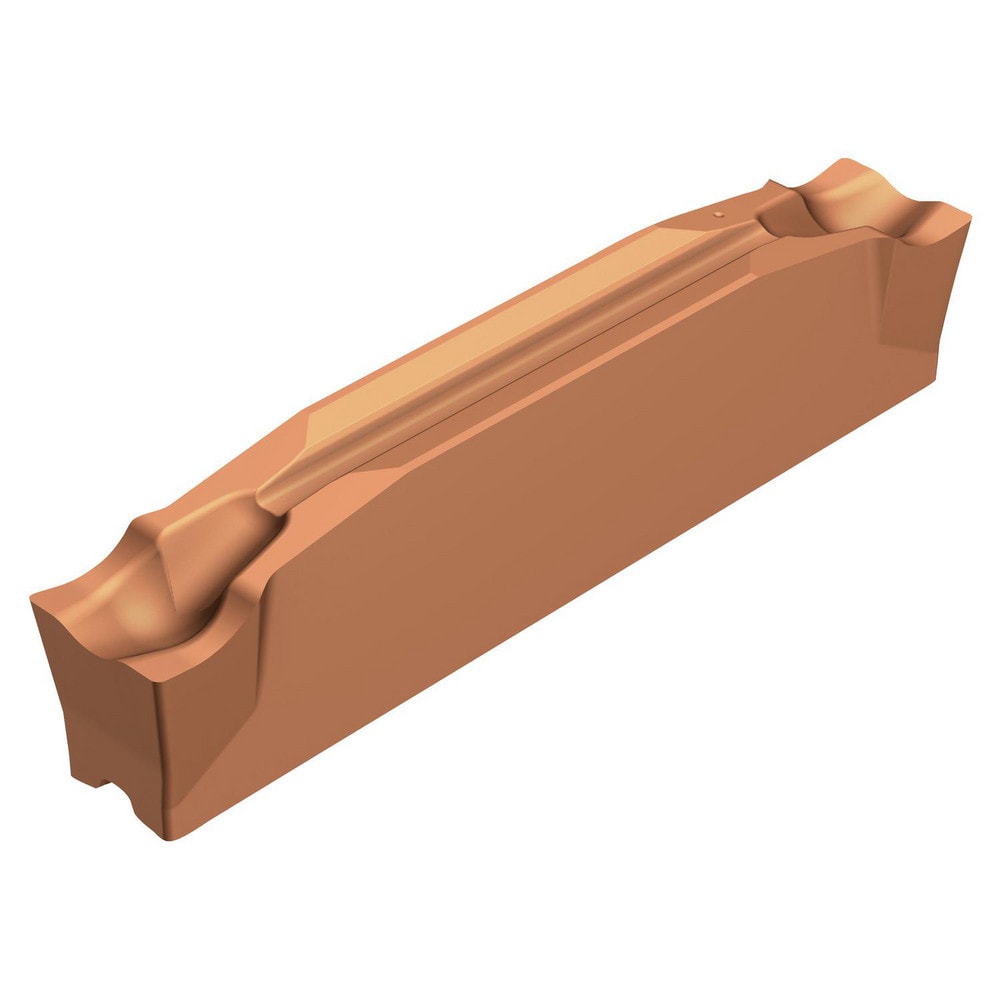

Cutoff Insert: C2ID2N01500002CM 1145, Carbide, 1.50 mm Cutting Width, 0.0591" Cutting Width
Item #: 00985671
Brand: Sandvik Coromant
Model #: 8194173
Product Specifications
| Insert Style | C2I |
| Insert Size Code | D2 |
| Insert Material | Carbide |
| Manufacturer Grade | 1145 |
| Cutting Width (Decimal Inch) | 0.0591 |
| Cutting Width (mm) | 1.50 |
| Insert Holding Method | Clamp |
| Lead Angle Direction | Left Hand |
| Insert Hand | Left Hand |
| Lead Angle | 0 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Chipbreaker | CM |
| Multi-use Tool | No |
| Cutting Tool Application | Cut-off; Parting |
| Series | CoroCut 2 |
| Coating Process | PVD |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | C2I-D2N-0150-0002-CM1145 |
| Cutting Height (mm) | 12.76 |
| Cutting Height (Decimal Inch) | 0.5024 |
| Manufacturers Catalog Number | C2I-D2N-0150-0002-CM1145 |
| Insert Seat Size | D |
| Cutting Direction | Left Hand |
| Coating/Finish | TiAlN/TiAlN |
| UNSPSC Code | 23242105 |
