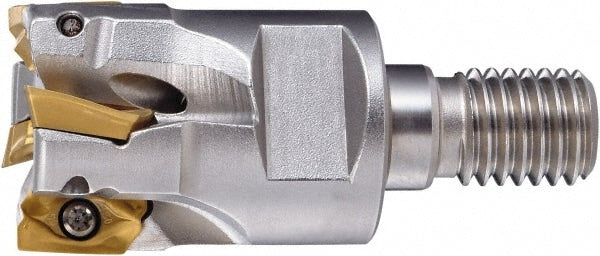

Indexable Square-Shoulder End Mill: PSE15R125ASF16-3, 1-1/4" Cut Dia, 1.575" Max Depth of Cut, M16 Modular Connection Shank
Item #: 55702864
Brand: OSG
Model #: 52601005
Product Specifications
| Cutting Diameter | 1.2500 in |
| Cutting Diameter | 1-1/4 |
| Overall Length (Decimal Inch) | 1.5750 |
| Maximum Depth of Cut (Decimal Inch) | 1.5750 |
| Cutter Style | PSE |
| Shank Type | Modular Connection |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 52601 |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 1.575 |
| Modular Connection Size | M16 |
| Insert Compatibility | ZDKT15... |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| Cutting Diameter | 1.2500 in |
| Cutting Diameter | 1-1/4 |
| Overall Length (Decimal Inch) | 1.5750 |
| Maximum Depth of Cut (Decimal Inch) | 1.5750 |
| Cutter Style | PSE |
| Shank Type | Modular Connection |
| Insert Holding Method | Screw |
| Tool Material | High-Speed Steel |
| Series | 52601 |
| Lead Angle | 90 |
| Head Length (Decimal Inch) | 1.575 |
| Modular Connection Size | M16 |
| Insert Compatibility | ZDKT15... |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 3 |
| Number Of Cutter Inserts | 3 |
| Coolant Through | Yes |
| MSC Part # | 55702864 |
| Mfr Part # | 52601005 |
| Country of Origin Country of Origin is subject to change | Luxembourg |
