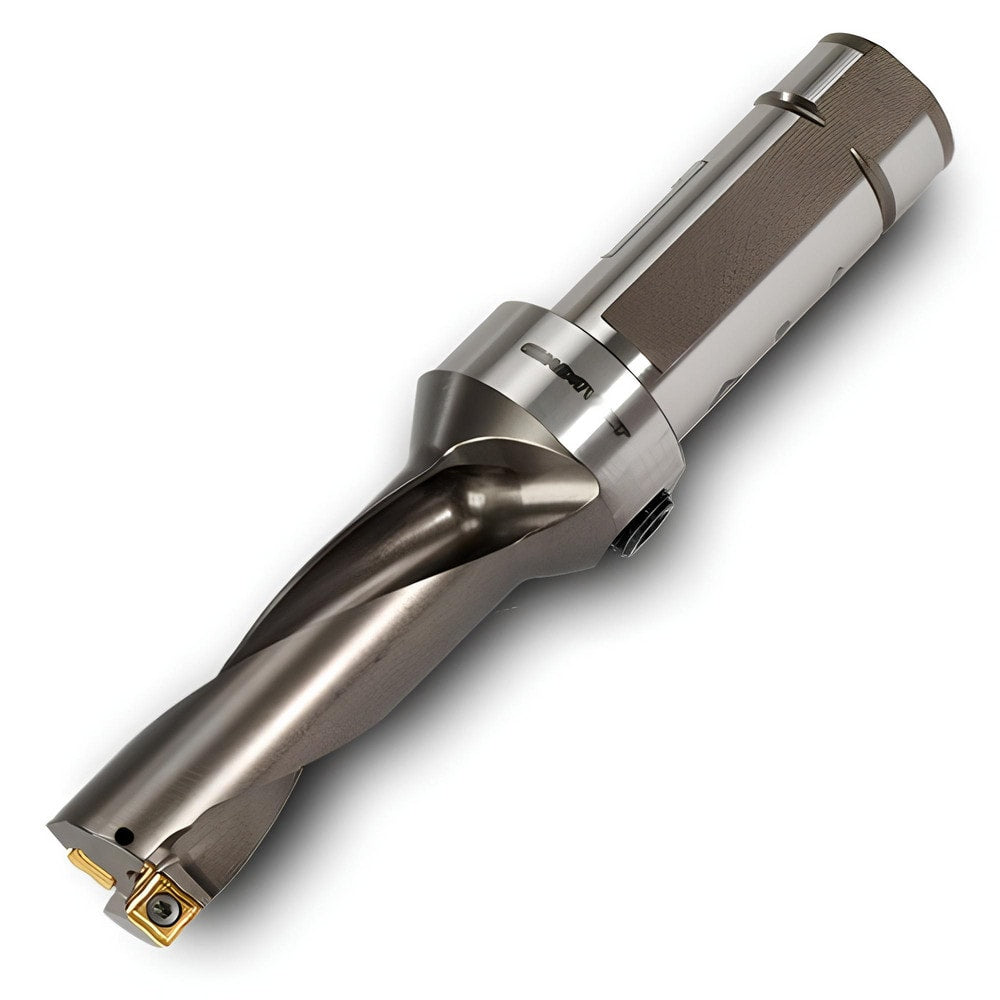

Brand: Ingersoll Cutting Tools / Part #: 6100286
Item #: 14642466
Brand: Ingersoll Cutting Tools
Model #: 6100286
Product Specifications
| Maximum Drill Depth | 1.9400 in |
| Drill Depth by Diameter Ratio | 2xD |
| Maximum Depth of Cut (Decimal Inch) | 1.9400 |
| Shank Type | Combination |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Drill Body Length to Flange (Decimal Inch) | 3.4300 |
| Toolholder Style | QR02 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 0.9690 |
| Overall Length (Decimal Inch) | 6.5700 |
| Overall Length | 6.57 |
| Through Coolant | Yes |
| Series | QR |
| Flute Length (Decimal Inch) | 1.9400 |
| Shank Length (Decimal Inch) | 3.1600 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Flute Type | Slow Spiral |
| Maximum Cutting Diameter (Decimal Inch) | 0.9690 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
