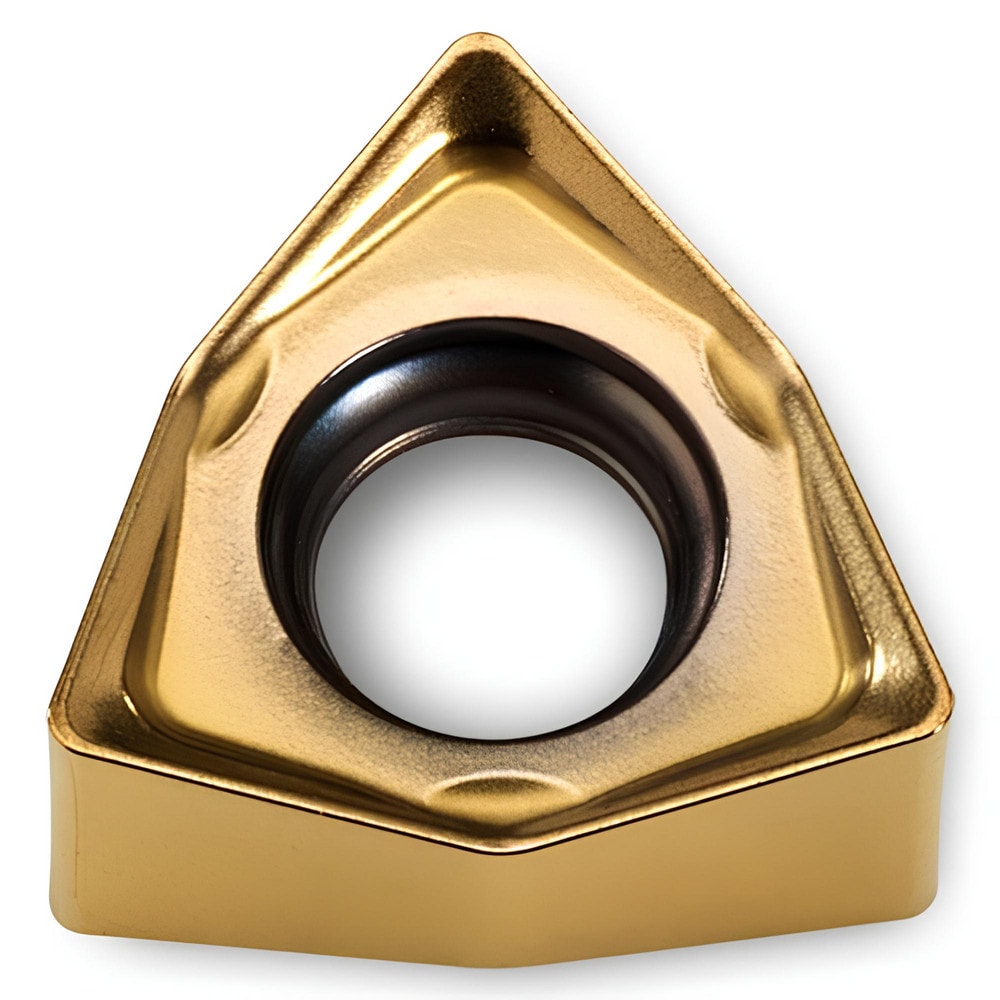

Brand: Ingersoll Cutting Tools / Part #: 6176381
Item #: 17668526
Brand: Ingersoll Cutting Tools
Model #: 6176381
Product Specifications
| Insert Style | WNMU |
| Insert Size Code | 04 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2504 |
| Thickness (Inch) | 5/32 |
| Inscribed Circle (Decimal Inch) | 0.2480 |
| Corner Radius (Inch) | 1/64 |
| Insert Hand | Neutral |
| Series | WNMU |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Number Of Cutting Edges | 6 |
| Insert Shape | Trigon |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | WNMU04T304N |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | WNMU04T304N IN2504 |
| Cutter Series Compatibility | FHU |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Trigon |
| Length of Cut (mm) | 3.8100 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiN; TiAlN |
| Multi-Use Tool | Yes |
