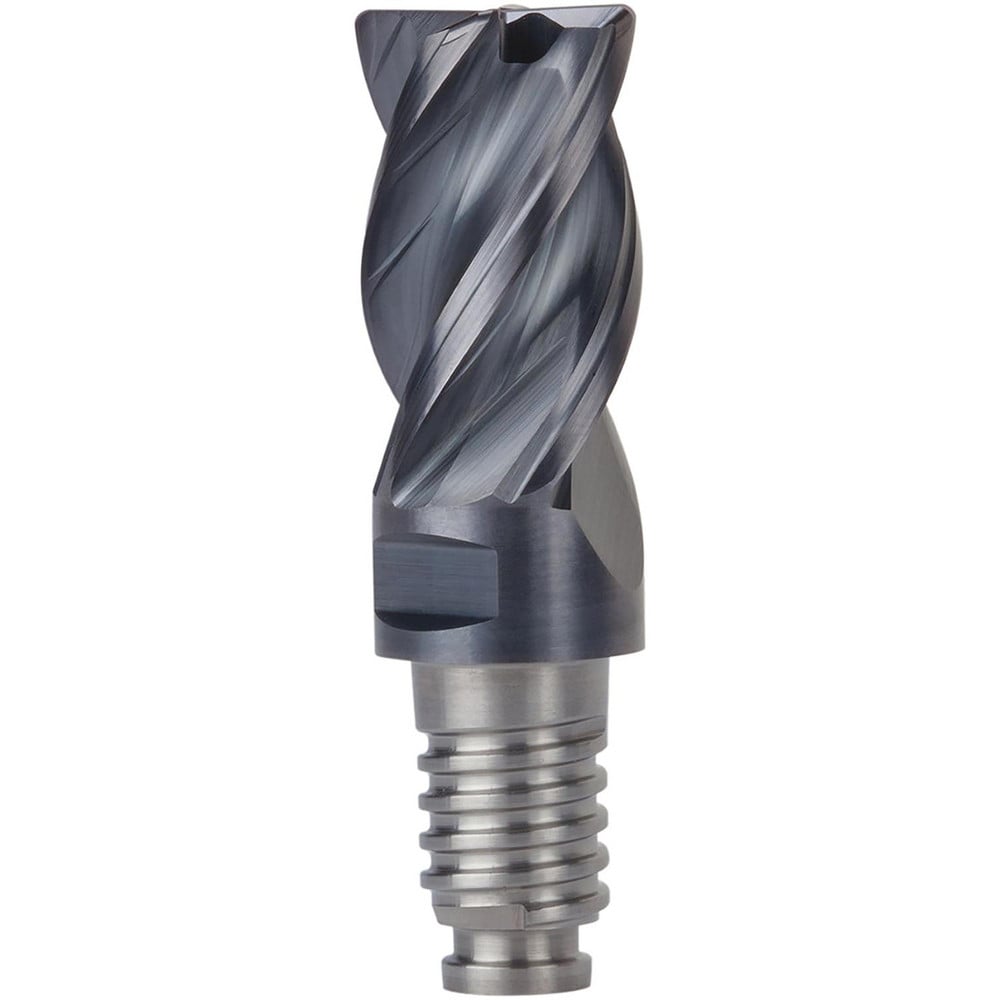

Brand: Kennametal / Part #: 6953267
Item #: 97273833
Brand: Kennametal
Model #: 6953267
Product Specifications
| Mill Diameter (Decimal Inch) | 0.5000 |
| Mill Diameter (Inch) | 1/2 |
| Length of Cut (Inch) | 3/4 |
| Connection Type | Duo-Lock 12 |
| Overall Length (Decimal Inch) | 1.7165 |
| Overall Length (mm) | 43.6000 |
| Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Center Cutting | Center Cutting |
| Helix Angle | 36.00/39.00 |
| Helix Style | Variable |
| Maximum Helix Angle | 39 |
| Minimum Helix Angle | 36 |
| Series/List | Harvi I TE; Duo-Lock |
| Variable Helix | Yes |
| Mill Diameter (Fractional Inch) | 1/2 |
| End Type | Square End |
| Extended Reach | No |
| Single Or Double End | Single |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Variable Index | Yes |
| Number Of Flutes | 4 |
| Finish Coating | AlTiN |
