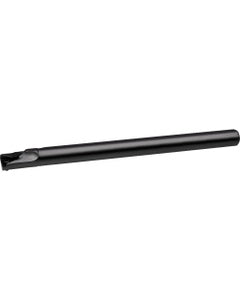

S08XSTLCR0910A Right-Hand, Positive Rake, Boring Bar
Item #: KY96THC11836
Brand: Kyocera Precision Tools
Model #: THC11836
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 120 mm |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 120 mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Head Length (LH) | 16 mm |
| Rake Angle Radial (GAMF) | -14 Degrees |
| Shank Height (H) | 7 mm |
| Series/List # | DYNB |
| Shank Length (LS) | 104 mm |
| Body Material | Steel |
| Functional Width (WF) | 5 mm |
| Style | S...STLC-A |
| Master Insert Identification (MIID) | | TCMX1815 | TCMT1815 | |
| Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 10 mm |
| Weight of Item (WT) | 0.1684 |
