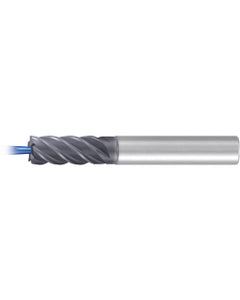

Corner Radius End Mill; 1/2″ Dia. × 1-1/4″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 5 FL ; Carbide ; AlCr
Item #: ER452966LZ05015
Brand: EMUGE-FRANKEN
Model #: 2966LZ.050015
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1/2″ |
| End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Applicable Material | | Stainless Steel | Super-Alloys / Titanium | |
| Depth of Cut Maximum (APMX) | 1-1/4″ |
| Application | | Finishing | |
| Overall Length (OAL) | 3″ |
| Corner Radius (RE) | 0.015″ |
| Cutting Edge Material | Carbide |
| Coolant Supply Property (CSP) | Coolant Thru |
| Coating | AlCr |
| Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 5 |
| Measurement Type | Inch |
| Flute Helix Angle (FHA) | 38 Degrees |
| Trade Name | TiNox-Cut |
| Shank Type | HA |
