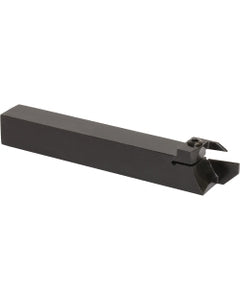

KGMR 2020K3, External Grooving Toolholder
Item #: KY96THT00200
Brand: Kyocera Precision Tools
Model #: THT00200
| Product Specifications | |
|---|---|
| Cutting Width Minimum (CWN) | 3 mm |
| Overall Length (OAL) | 125 mm |
| Cutting Width Maximum (CWX) | 4 mm |
| Cutting Direction (HAND) | Right Hand |
| Cutting Depth Maximum (CDX) | 9 mm |
| Coolant Supply Property (CSP) | External |
| Shank Height (H) | 20 mm |
| Application | | Cut-Off | Ext. Grooving | |
| Shank Width (B) | 20 mm |
| Body Material | Steel |
| Functional Width (WF) | 18.8 mm |
| Series/List # | KGM |
| Functional Length (LF) | 125 mm |
| Measurement Type | Metric |
| Head Length (LH) | 27 mm |
| Shank Length (LS) | 98 mm |
