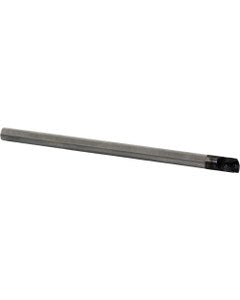

C0325KSWUBL12 Left-Hand, Positive Rake, Boring Bar
Item #: KY96THC89123
Brand: Kyocera Precision Tools
Model #: THC89123
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.2032″ |
| Cutting Direction (HAND) | Left Hand |
| Functional Length (LF) | 5″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 5″ |
| Rake Angle Axial (GAMP) | 5 Degrees |
| Head Length (LH) | 1/2″ |
| Rake Angle Radial (GAMF) | -15 Degrees |
| Shank Height (H) | 0.1799″ |
| Series/List # | GPBB |
| Shank Length (LS) | 4-1/2″ |
| Style | C...SWUB |
| Functional Width (WF) | 0.118″ |
| Measurement Type | Inch |
| Master Insert Identification (MIID) | | WBMT121 | WBGT121 | WBGW121 | |
| Weight of Item (WT) | 0.129 |
| Minimum Bore Diameter (DMIN) | 0.2402″ |
