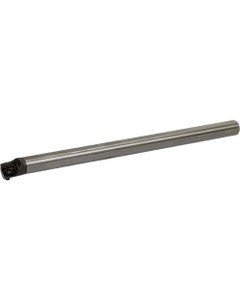

C08RSCLPR3 Right-Hand, Positive Rake, Boring Bar
Item #: KY96THC89107
Brand: Kyocera Precision Tools
Model #: THC89107
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1/2″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 8″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 8″ |
| Rake Angle Axial (GAMP) | 7 Degrees |
| Head Length (LH) | 1.1799″ |
| Rake Angle Radial (GAMF) | -4 Degrees |
| Shank Height (H) | 0.4799″ |
| Series/List # | GPBB |
| Shank Length (LS) | 6.8201″ |
| Style | C...SCLP |
| Functional Width (WF) | 0.315″ |
| Measurement Type | Inch |
| Master Insert Identification (MIID) | | CPMT32 | CPMH32 | CPMB32 | CPGB32 | |
| Weight of Item (WT) | 1.462 |
| Minimum Bore Diameter (DMIN) | 0.6299″ |
