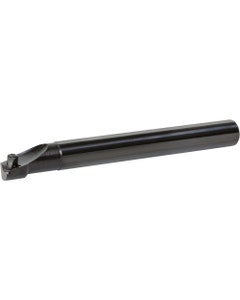

S10XCTUPR2 Right-Hand, Positive Rake, Boring Bar
Item #: KY96THC89249
Brand: Kyocera Precision Tools
Model #: THC89249
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 0.6252″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 7″ |
| Coolant Supply Property (CSP) | External |
| Overall Length (OAL) | 7″ |
| Rake Angle Axial (GAMP) | 5 Degrees |
| Head Length (LH) | 1-1/4″ |
| Rake Angle Radial (GAMF) | 0 Degrees |
| Shank Height (H) | 0.5839″ |
| Series/List # | GPBB |
| Shank Length (LS) | 5-3/4″ |
| Body Material | Steel |
| Functional Width (WF) | 0.313″ |
| Style | S...CTUP |
| Master Insert Identification (MIID) | | TPMR22 | TPGR22 | TPM22 | TPG22 | |
| Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 5/8″ |
| Weight of Item (WT) | 0.65 |
