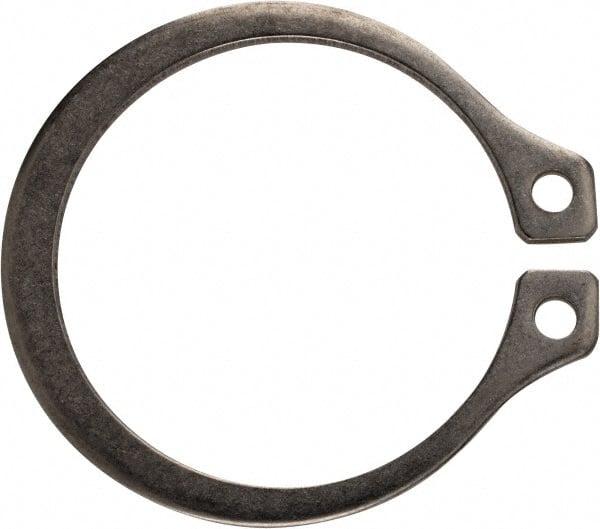

Rotor Clip - 15/32" Shaft Diam, 0.443" Groove Diam, Stainless Steel External SH Style Retaining Ring
Item #: 99623035
Brand: Rotor Clip
Model #: SH-46SS
Features and Benefits
SH style external retaining rings refer to shaft style and is applied externally onto the shaft of a workpiece. The SH ring is installed by separating the lugs, then being released into a groove.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | SH Style |
| System of Measurement | Inch |
| Shaft Diameter (Inch) | 15/32 |
| Groove Diameter (Decimal Inch) | 0.4430 |
| Free Diameter (Decimal Inch) | 0.4280 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Stainless Steel |
| Finish/Coating | Passivated |
| Material Grade | 15-7 Grade 632 |
| Groove Width (Decimal Inch) | 0.0290 |
| Groove Depth (Decimal Inch) | 0.0130 |
| Ring Thickness (Decimal Inch) | 0.0250 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0020 to 0.0020 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Diameter Tolerance (Decimal Inch) | -0.005 to 0.003 |
| Ring Thickness Tolerance (Decimal Inch) | 0.0020 to 0.0020 |
