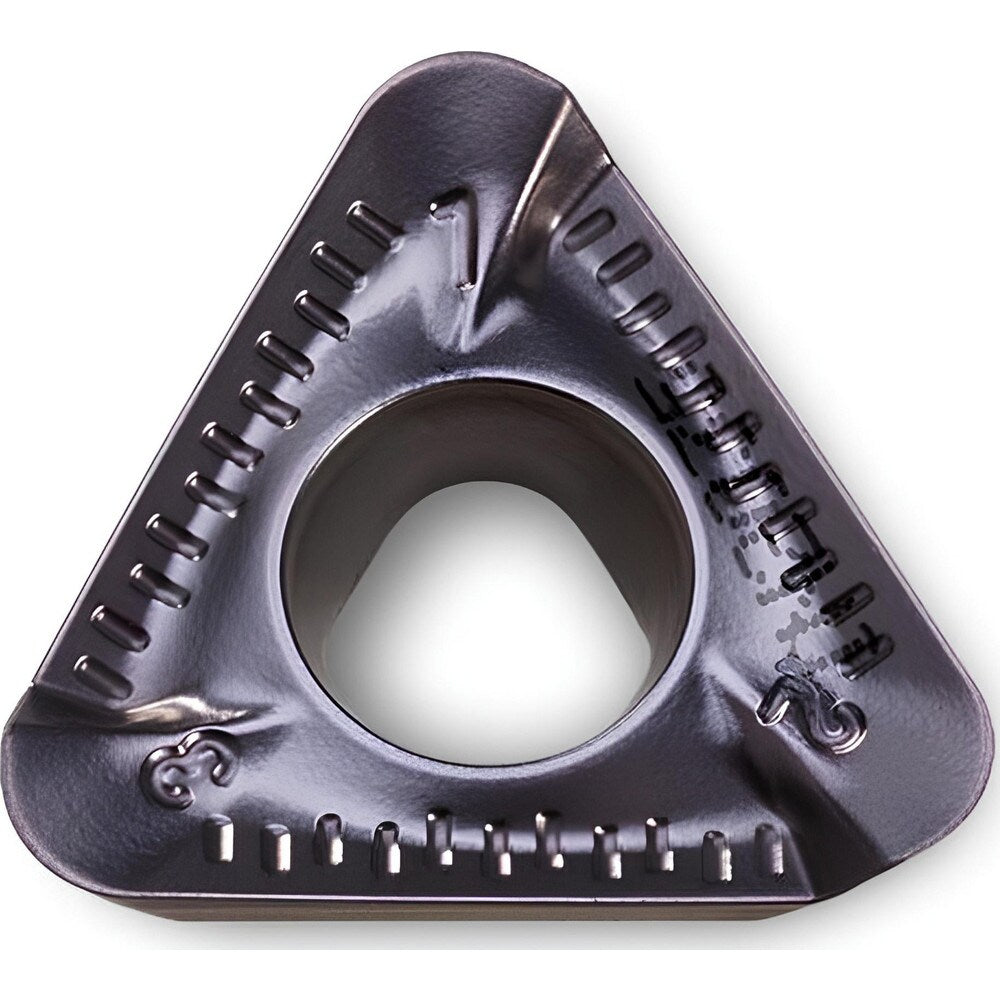

Brand: Ingersoll Cutting Tools / Part #: 6109450
Item #: 16443574
Brand: Ingersoll Cutting Tools
Model #: 6109450
Product Specifications
| Insert Style | THLS |
| Insert Size Code | 130624 |
| Insert Material | Carbide |
| Manufacturer Grade | IN2035 |
| Inscribed Circle (Inch) | 17/32 |
| Corner Radius (Inch) | 3/32 |
| Insert Hand | Right Hand |
| Series | THLS |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.5900 |
| Number Of Cutting Edges | 3 |
| Insert Shape | Triangle |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium |
| Primary Workpiece Material Code | S; M |
| Ansi Code | THLS130624R-HR |
| Manufacturers Catalog Number | THLS130624R-HR IN2035 |
| Cutter Series Compatibility | KJ5P; 1KJ1P; KJ6P |
| Chip Breaker | HR |
| Cutting Direction | Right Hand |
| Shape | Triangle |
| Length of Cut (mm) | 14.9900 |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Single |
| Coating/Finish | TiAlN |
| Included Angle Degree | 60 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2360 |
| Multi-Use Tool | No |
