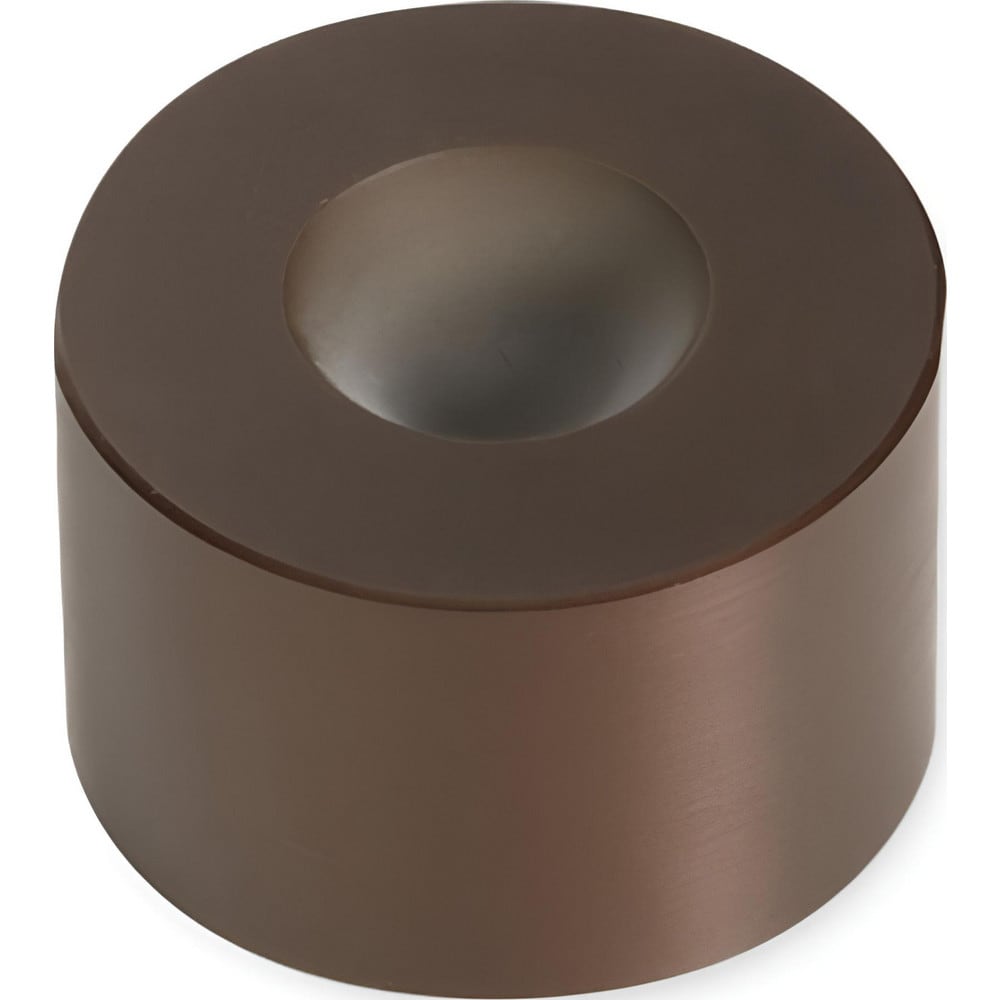

Brand: Ingersoll Cutting Tools / Part #: 6131635
Item #: 67312173
Brand: Ingersoll Cutting Tools
Model #: 6131635
Product Specifications
| Insert Style | RNGX |
| Insert Size Code | 1207 |
| Insert Material | Silicon Nitride |
| Manufacturer Grade | IN76N |
| Length (Inch) | 1/2 |
| Thickness (Inch) | 5/16 |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Inch) | 1/4 |
| Insert Hand | Neutral |
| Series | RNGX |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Round |
| Rake | Negative |
| Primary Workpiece Material | Super-alloys & Titanium |
| Primary Workpiece Material Code | S |
| Ansi Code | RNGX1207CH |
| Rake Angle | 0.000 |
| Manufacturers Catalog Number | RNGX1207CH IN76N |
| Cutter Series Compatibility | DW2H; DW1H |
| Chip Breaker | None |
| Cutting Direction | Neutral |
| Shape | Round |
| Length of Cut (mm) | 6.3500 |
| Insert Holding Method | Screw |
| Coating Classification | Uncoated |
| Single or Double Sided Insert | Double |
| Coating/Finish | Uncoated |
| Width (Decimal Inch - 4 Decimals) | 0.5000 |
| Multi-Use Tool | No |
