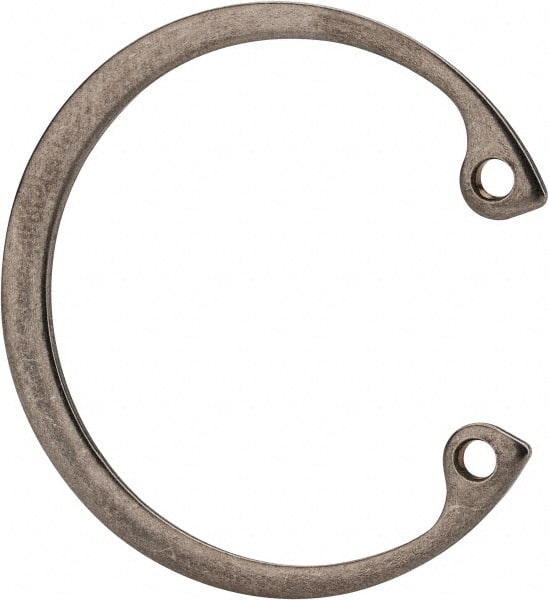

Rotor Clip - 1-15/16" Bore Diam, Stainless Steel Internal Snap Retaining Ring
Item #: 99616013
Brand: Rotor Clip
Model #: HO-193SS
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Stainless Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 1-15/16 |
| Groove Diameter (Decimal Inch) | 2.0560 |
| Groove Width (Decimal Inch) | 0.0680 |
| Free Outside Diameter (Decimal Inch) | 1.9375 |
| Military Specification | Does Not Meet Military Specifications |
| Ring Thickness (Decimal Inch) | 0.0620 |
| Material Grade | 15-7 Grade 632 |
| Finish/Coating | Passivated |
| Groove Depth (Decimal Inch) | 0.0590 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0050 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.025 to 0.035 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
