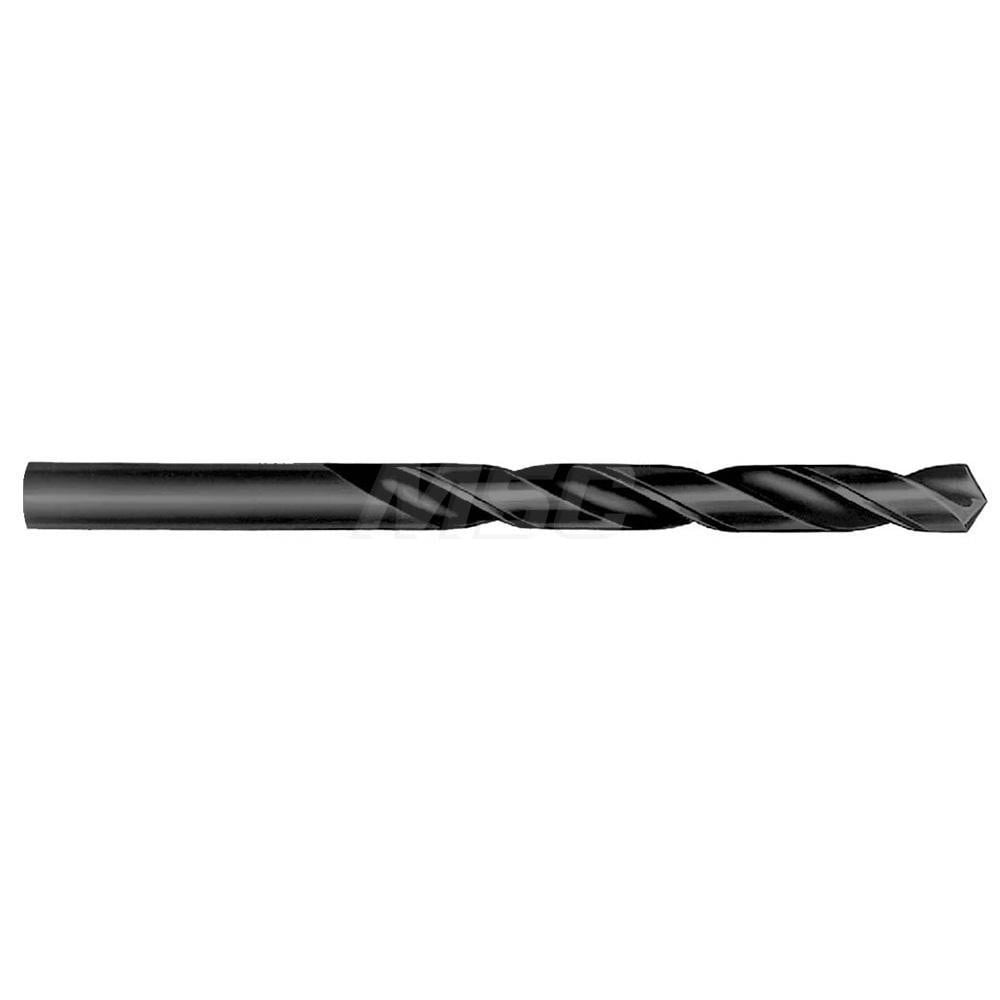

Brand: Made in USA / Part #: 301 4.25
Item #: 71244255
Brand: Made in USA
Model #: 301 4.25
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.1673 |
| Drill Bit Size (mm) | 4.25 |
| Drill Bit Material | High Speed Steel |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | Oxide |
| Drill Point Angle (Degrees) | 118 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Flute Length (Inch) | 2-1/8 |
| Shank Diameter (Decimal Inch) | 0.1673 |
| Overall Length (mm) | 82.55 |
| Overall Length (Inch) | 3-1/4 |
| Flute Length (mm) | 53.98 |
| Series | 301 |
| Shank Length (mm) | 28.57 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Tool Performance | General Purpose |
| Drill Bit Grade | General Purpose |
| Drill Bit Size Range (Decimal Inch) | 0.1500 - 0.2000 |
| Drill Bit Size Range (mm) | 4.00 - 5.00 |
