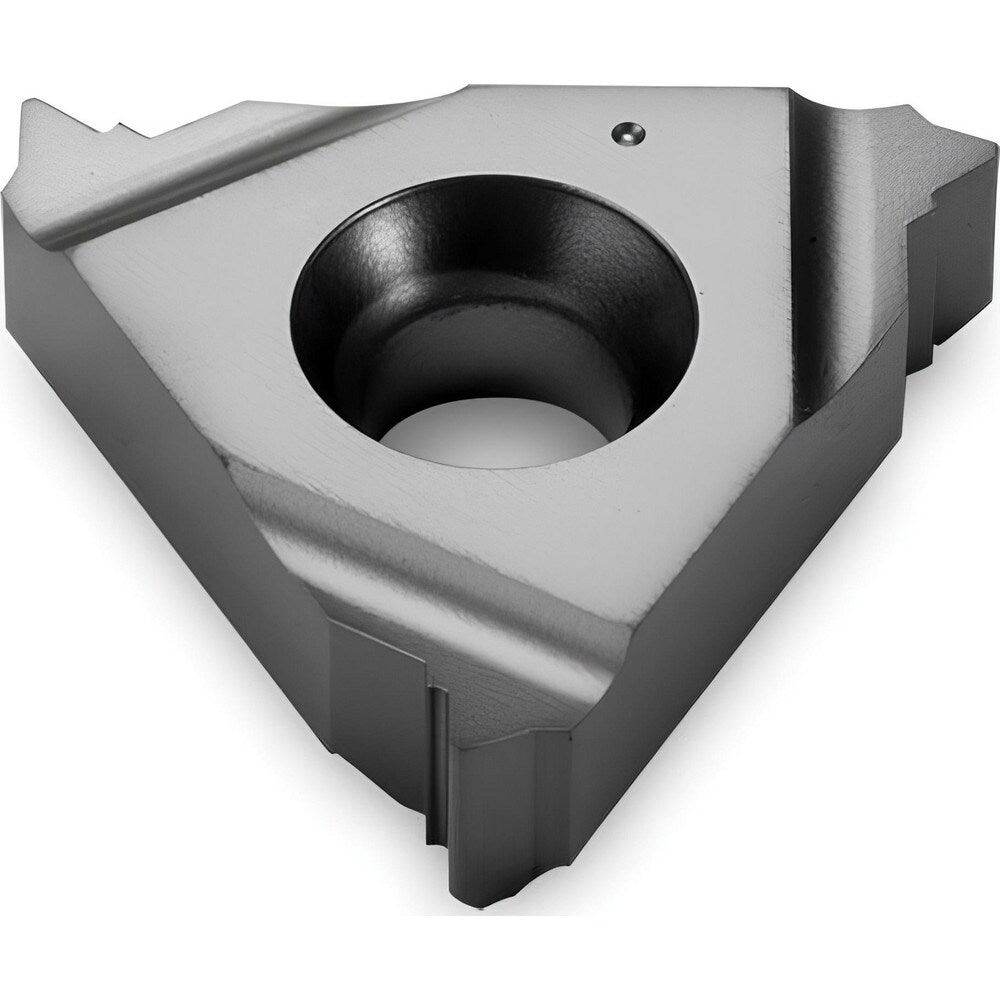

Brand: Ingersoll Cutting Tools / Part #: 5900049
Item #: 06506612
Brand: Ingersoll Cutting Tools
Model #: 5900049
Product Specifications
| Insert Style | 22ER |
| Insert Size Code | 22 |
| Insert Material | Carbide |
| Manufacturer Grade | P30 |
| Thread Type | External |
| Pitch (mm) | 5.08 |
| Thread Standard | UN 60 Degree |
| Insert Hand | Right Hand |
| Included Angle | 60.00 |
| Chipbreaker | None |
| Series | American UN Regular Type |
| Inscribed Circle (Inch) | 1/2 |
| Corner Radius (Decimal Inch) | 0.0260 |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal |
| Primary Workpiece Material Code | N |
| Ansi Code | 22ER5UN |
| Iso Code | 22ER5UN |
| Cutting Edge to Theoretical Edge Length (Decimal Inch) | 0.098 |
| Face of Insert to Tip Centerline (Decimal Inch) | 0.067 |
| Number of Teeth Per Side | 1 |
| Cutting Direction | Right Hand |
| Coating Classification | Uncoated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1880 |
| Coating/Finish | Uncoated |
