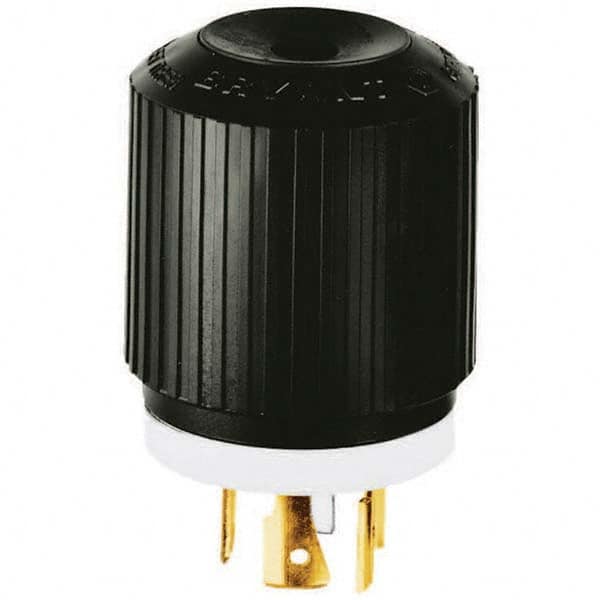

Bryant Electric - Twist Lock Plugs & Connectors Connector Type: Plug Grade: Industrial
Item #: 10091700
Brand: Bryant Electric
Model #: 71820NP
Product Specifications
Twist Lock Plugs & Connectors; Connector Type: Plug ; Grade: Industrial ; NEMA Configuration: L18-20P ; Amperage: 20 ; Voltage: 120/208 VAC ; Number of Poles: 4
| Connector Type | Plug |
| Grade | Industrial |
| NEMA Configuration | L18-20P |
| Amperage | 20 |
| Voltage | 120/208 VAC |
| Number of Poles | 4 |
| Number of Wires | 4 |
| Color | Black/White |
| Resistance Features | Impact Resistant |
| Maximum Cord Diameter (Decimal Inch) | 1.1500 |
| Maximum Cord Diameter (mm) | 29.21 |
| Minimum Cord Diameter (mm) | 11.94 |
| Minimum Cord Diameter (Decimal Inch) | 0.4700 |
| Number of Phases | 3 |
| Grounding Style | Ungrounded |
| Material | Nylon |
| Standards Met | UL Listed; CSA Certified |
