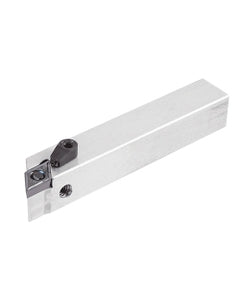

PDACL 1616X-11S-JHP-MC
Item #: EH363308033
Brand: Iscar
Model #: 3308033
| Product Specifications | |
|---|---|
| Shank Height (H) | 16 mm |
| Application | | Ext. 55° Diamond 91° Approach | |
| Shank Width (B) | 16 mm |
| Rake Angle Axial (GAMP) | 0 Degrees |
| Functional Length (LF) | 76 mm |
| Rake Angle Radial (GAMF) | 0 Degrees |
| Head Length (LH) | 28 mm |
| Body Material | Steel |
| Functional Width (WF) | 16.2 mm |
| Cutting Position | External |
| Inscribed Circle Diameter (IC) | 9.52 mm |
| Tool Type | Square Shank Turning Tools |
| Cutting Direction (HAND) | Left Hand |
| Measurement Type | Metric |
| Master Insert Identification (MIID) | DC..11T3 |
