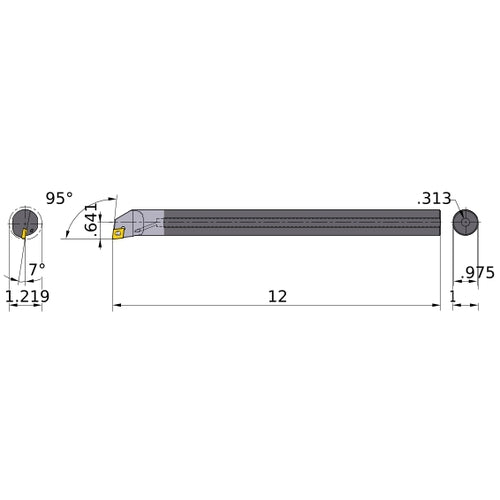

E16T-SCLCR4 BAR
Item #: MB0362025560
Brand: Mitsubishi Materials USA
Model #: 62025560
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 12″ |
| Frontal Edge Angle | 95 Degrees |
| Shank Height (H) | 0.975″ |
| Rake Angle Radial (GAMF) | 7 Degrees |
| Functional Width (WF) | 0.641″ |
| Series/List # | E-SCLC_C_INCH |
| Minimum Bore Diameter (DMIN) | 1.219″ |
| Measurement Type | Inch |
