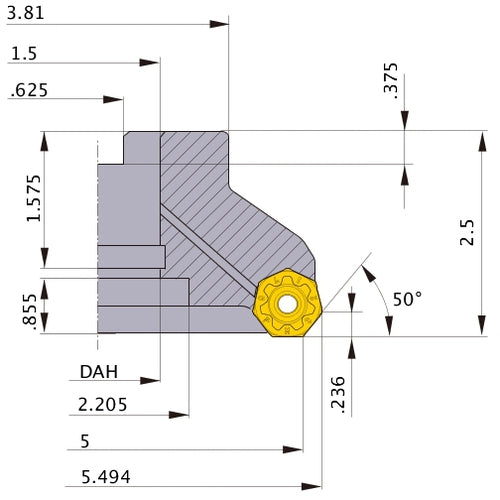

AHX640SUR0508EA FACE MILL
Item #: MB03572640
Brand: Mitsubishi Materials USA
Model #: 572640
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 5″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 5″ |
| Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 5.494″ |
| Functional Length (LF) | 2-1/2″ |
| Depth of Cut Maximum (APMX) | 0.236″ |
| Tool Cutting Edge Angle (KAPR) | 50 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Series/List # | AHX640S_INCH |
