AJX06R162AM0830 INDX EM
Item #: MB03453481
Brand: Mitsubishi Materials USA
Model #: 453481

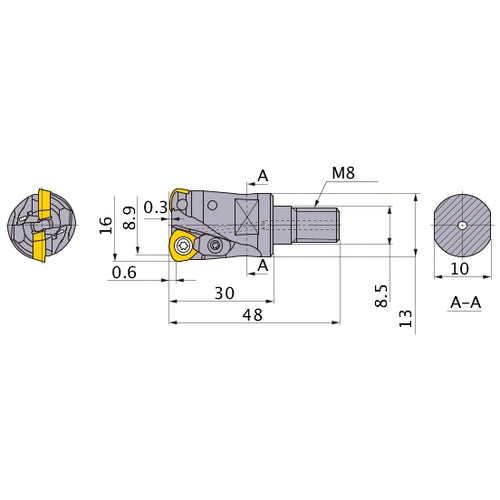

| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 8.9 mm |
| Functional Length (LF) | 30 mm |
| Cutting Diameter (DC) | 8.9 mm |
| Flute Count (NOF) | 2 |
| Cutting Diameter Maximum (DCX) | 16 mm |
| Body Diameter (BD) | 13 mm |
| Cutting Item Count (CICT) | 2 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.6 mm |
| Series/List # | AJX |
| Overall Length (OAL) | 48 mm |
| Measurement Type | Metric |
| Ramping Angle Maximum (RMPX) | 3 Degrees |
| Connection Retention Knob Thread Size (CRKS) | M8 |
| Connection Diameter Machine Side (DCONMS) | 8.5 mm |
