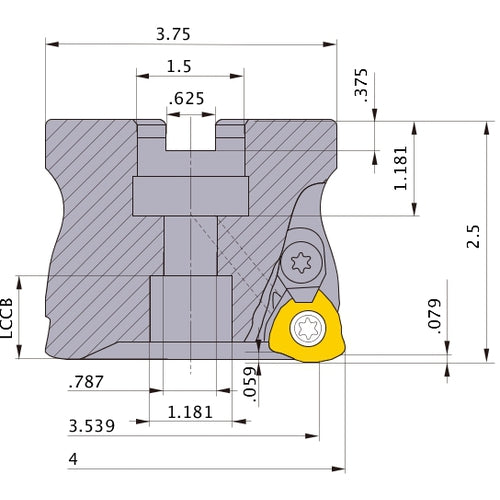

AJXU12R0407E FACE MILL
Item #: MB03428242
Brand: Mitsubishi Materials USA
Model #: 428242
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 3.539″ |
| Ramping Angle Maximum (RMPX) | 0.8 Degrees |
| Cutting Diameter (DC) | 3.539″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Diameter Maximum (DCX) | 4″ |
| Measurement Type | Inch |
| Depth of Cut Maximum (APMX) | 0.079″ |
| Functional Length (LF) | 2-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Series/List # | AJX_INCH |
