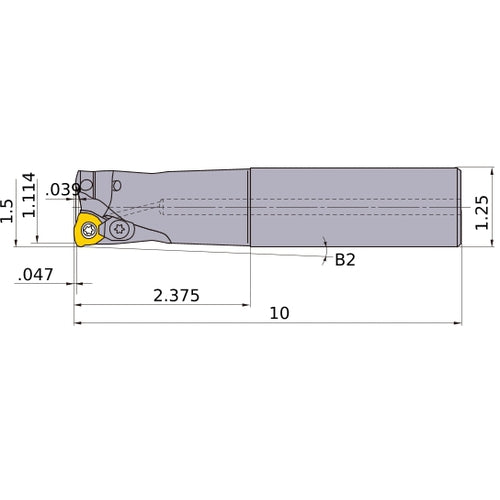

AJXU09R244SA20M INDEXABLE ENDMILL
Item #: MB03428200
Brand: Mitsubishi Materials USA
Model #: 428200
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1.114″ |
| Head Length (LH) | 2-3/8″ |
| Cutting Diameter (DC) | 1.114″ |
| Functional Length (LF) | 10″ |
| Cutting Diameter Maximum (DCX) | 1-1/2″ |
| Flute Count (NOF) | 4 |
| Cutting Item Count (CICT) | 4 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.047″ |
| Series/List # | AJX_INCH |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1-1/4″ |
