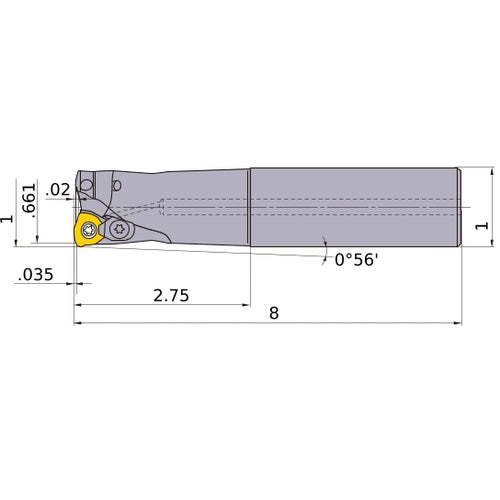

AJXU08R163SA16M INDEXABLE ENDMILL
Item #: MB03428189
Brand: Mitsubishi Materials USA
Model #: 428189
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 0.661″ |
| Head Length (LH) | 2-3/4″ |
| Cutting Diameter (DC) | 0.661″ |
| Functional Length (LF) | 8″ |
| Cutting Diameter Maximum (DCX) | 1″ |
| Flute Count (NOF) | 3 |
| Cutting Item Count (CICT) | 3 |
| Cutting Direction (HAND) | Right Hand |
| Depth of Cut Maximum (APMX) | 0.035″ |
| Series/List # | AJX_INCH |
| Ramping Angle Maximum (RMPX) | 2 Degrees |
| Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1″ |
