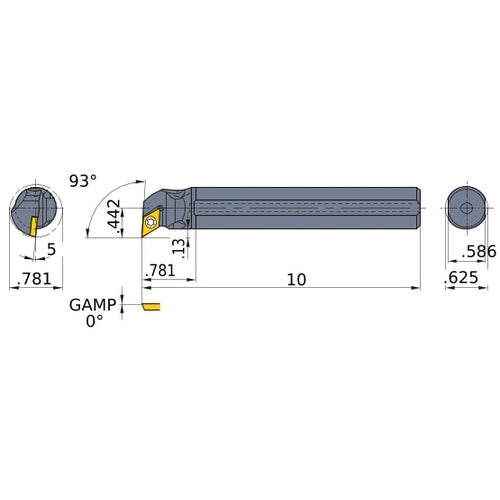

M-FSDUCR-102-C BORING BAR
Item #: MB03307352
Brand: Mitsubishi Materials USA
Model #: 307352
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 5/8″ |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 10″ |
| Frontal Edge Angle | 93 Degrees |
| Head Length (LH) | 0.781″ |
| Rake Angle Radial (GAMF) | 5 Degrees |
| Shank Height (H) | 0.586″ |
| Series/List # | M-FSDUC_INCH |
| Functional Width (WF) | 0.442″ |
| Measurement Type | Inch |
| Minimum Bore Diameter (DMIN) | 0.781″ |
