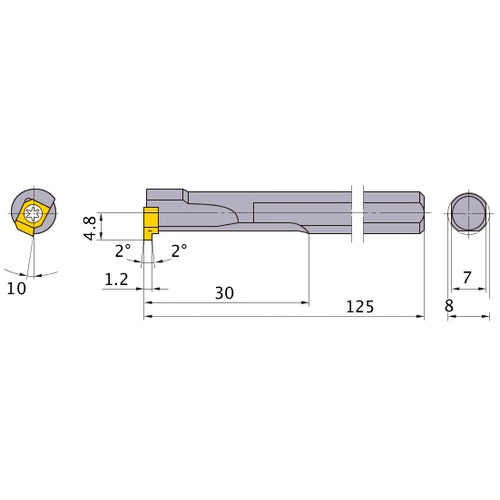

FSL5108R BAR
Item #: MB03114796
Brand: Mitsubishi Materials USA
Model #: 114796
| Product Specifications | |
|---|---|
| Connection Diameter Machine Side (DCONMS) | 8 mm |
| Cutting Direction (HAND) | Right Hand |
| Functional Length (LF) | 125 mm |
| Rake Angle Radial (GAMF) | 10 Degrees |
| Head Length (LH) | 30 mm |
| Series/List # | FSL51 |
| Shank Height (H) | 7 mm |
| Measurement Type | Metric |
| Functional Width (WF) | 4.8 mm |
| Cutting Depth Maximum (CDX) | 1 mm |
| Minimum Bore Diameter (DMIN) | 10 mm |
