AHX475SUR0508EA MILL
Item #: MB0310567708
Brand: Mitsubishi Materials USA
Model #: 10567708

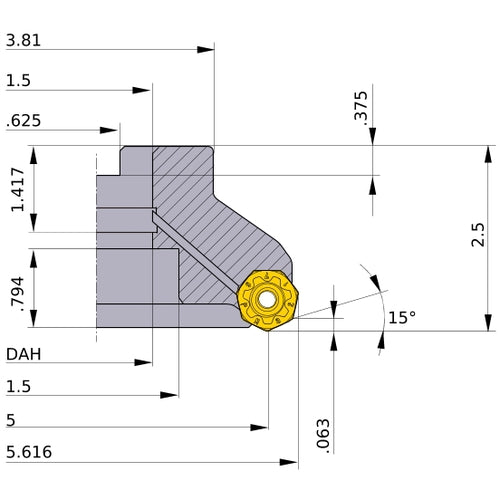

| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 5″ |
| Cutting Direction (HAND) | Right Hand |
| Cutting Diameter (DC) | 5″ |
| Measurement Type | Inch |
| Cutting Diameter Maximum (DCX) | 5.616″ |
| Functional Length (LF) | 2-1/2″ |
| Depth of Cut Maximum (APMX) | 0.063″ |
| Tool Cutting Edge Angle (KAPR) | 15 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1-1/2″ |
| Series/List # | AHX475S_INCH |
