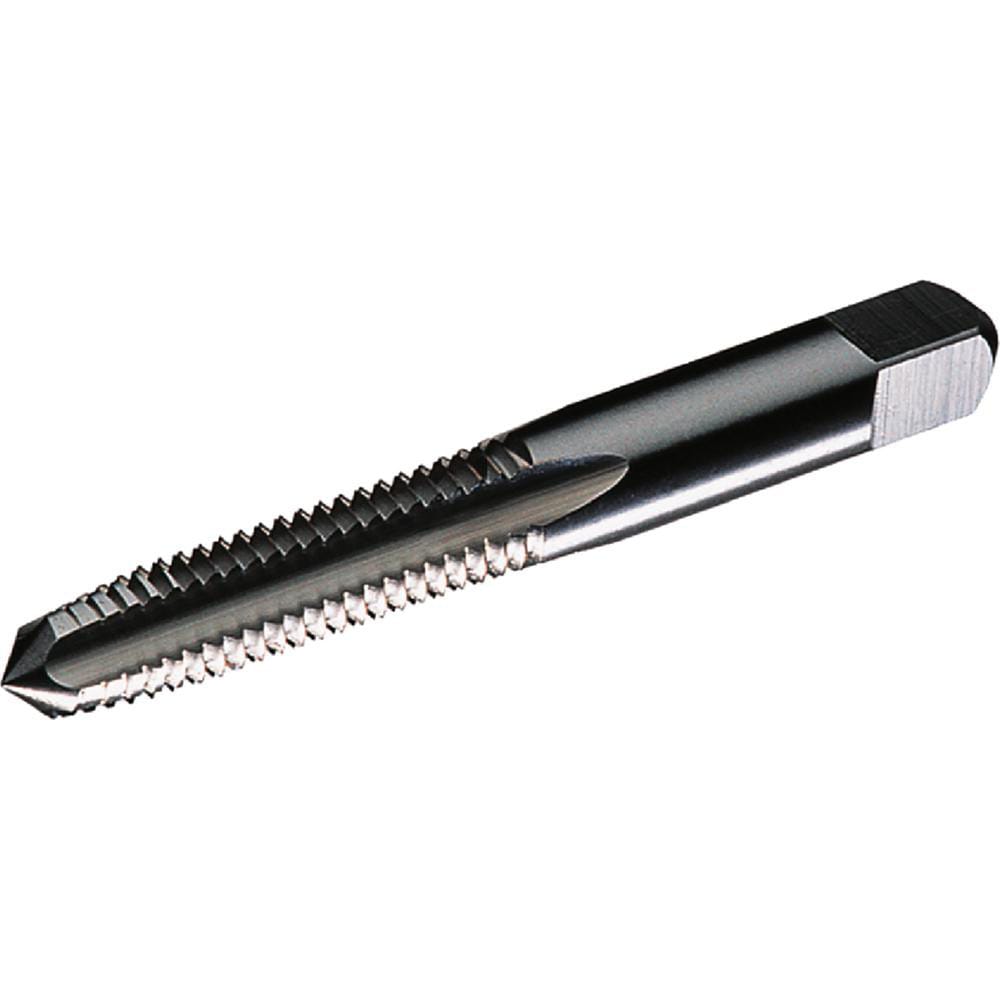

Brand: Widia / Part #: 3171081
Item #: 74808502
Brand: Widia
Model #: 3171081
Product Specifications
| Tap Type | Machine |
| Thread Size (mm) | M3x0.5 |
| Thread Limit | D3 |
| Class Of Fit | 6H |
| Number Of Flutes | 3 |
| Chamfer | Plug |
| Material | High Speed Steel |
| Coating/Finish | TiCN |
| Threads per Inch | 51 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | Metric |
| Overall Length (mm) | 49.2100 |
| Thread Pitch (mm) | 0.50 |
| Thread Length (mm) | 15.88 |
| Thread Depth (mm) | 15.88 |
| Application | Metal |
| Shank Diameter (mm) | 3.5800 |
| Square Length (mm) | 4.76 |
| Series | 5353 |
| Shank Length (mm) | 0.000 |
| Shank Length (Decimal Inch) | 1.3122 |
