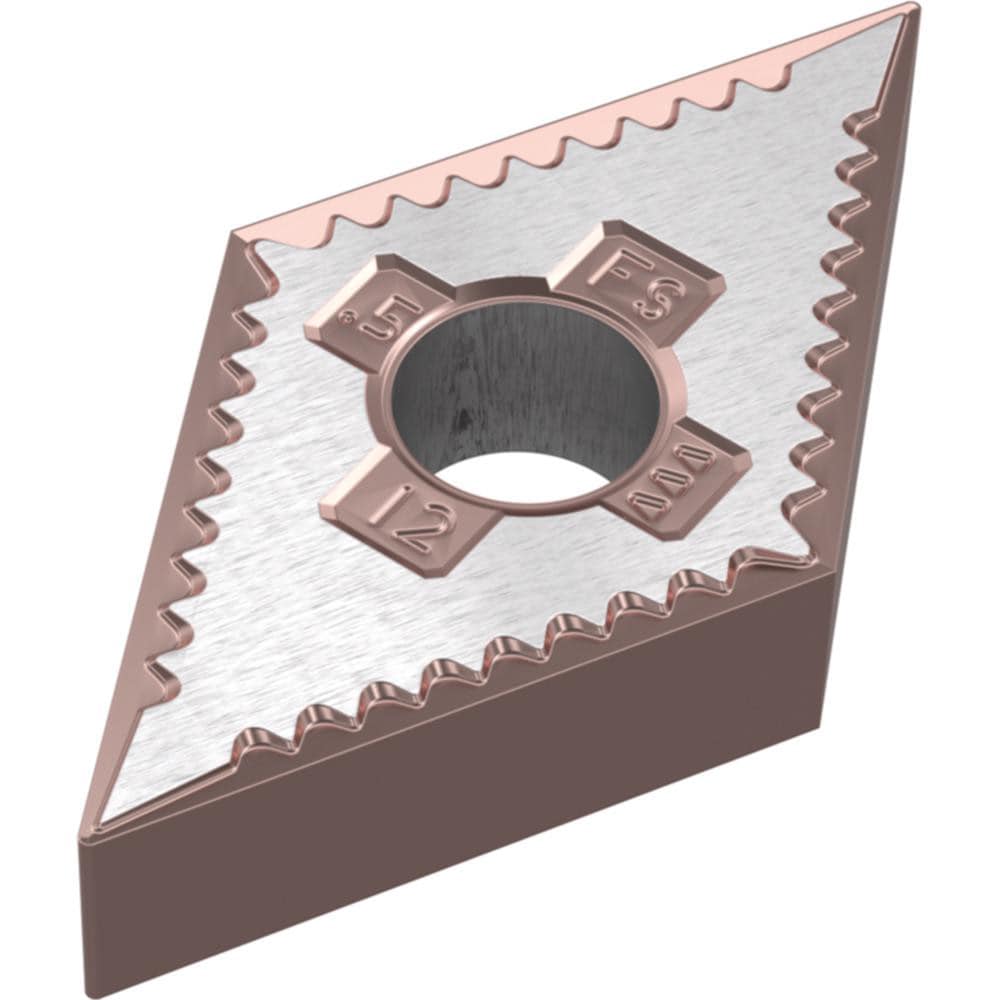

Brand: Widia / Part #: 5549994

Brand: Widia / Part #: 5549994


Item #: 95937975
Brand: Widia
Model #: 5549994

Product Specifications

Insert Style DNGG
Insert Shape Code D
Insert Size Code 433
Insert Shape Diamond
Coating/Finish Uncoated
Manufacturer Grade WU10HT
Corner Radius (Decimal Inch) 0.0472
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.2031
Maximum Depth of Cut (Decimal Inch) 0.3052
Inscribed Circle (Decimal Inch) 0.5000
Insert Holding Method Clamp
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code N
Tolerance Code G
Included Angle 55.00
Relief Angle 0.000
Series DNGG
Coating Process Uncoated
Rake Negative
Wiper Edge No
Insert Length (Decimal Inch) 0.6104
Number Of Cutting Edges 4
Primary Workpiece Material Super-alloys & Titanium
Primary Workpiece Material Code S
Secondary Workpiece Material Non-Ferrous Metal
Secondary Workpiece Material Code N
Ansi Code DNGG433FS
Iso Code DNGG150412FS
Manufacturers Catalog Number DNGG433FS
Cutting Direction Neutral
Coating Classification Uncoated
Chip Breaker FS
Cutting Edge Style Sharp
Style DNGG
Width (Decimal Inch - 4 Decimals) 0.5000
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$17.69
