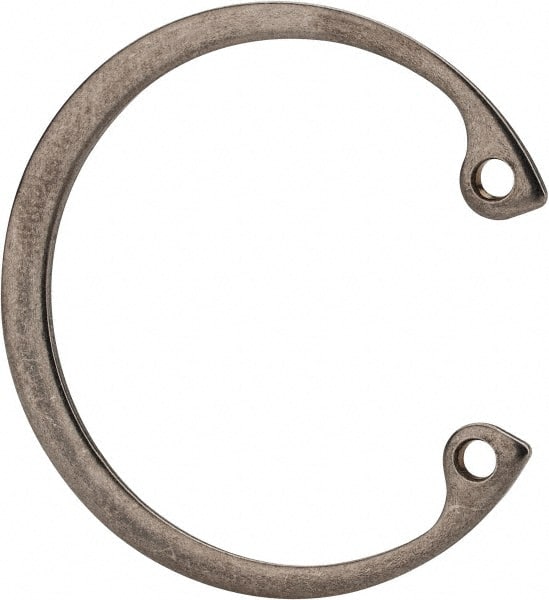

Rotor Clip - 1.023" Bore Diam, Stainless Steel Internal Snap Retaining Ring
Item #: 99616120
Brand: Rotor Clip
Model #: HO-102SS
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Stainless Steel |
| System of Measurement | Inch |
| Bore Diameter (Decimal Inch) | 1.0230 |
| Groove Diameter (Decimal Inch) | 1.0910 |
| Groove Width (Decimal Inch) | 0.0460 |
| Free Outside Diameter (Decimal Inch) | 1.0230 |
| Military Specification | Does Not Meet Military Specifications |
| Ring Thickness (Decimal Inch) | 0.0420 |
| Material Grade | 15-7 Grade 632 |
| Finish/Coating | Passivated |
| Groove Depth (Decimal Inch) | 0.0340 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0030 to 0.0040 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.010 to 0.015 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
