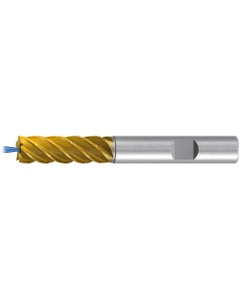

Square End Mill; 6 mm Dia. × 18 mm LOC × 6 mm Shank Dia. × 62 mm OAL ; 4 FL ; Carbide ; TiAlN+TiN ; Series 2539TZ
Item #: ER452539TZ006
Brand: EMUGE-FRANKEN
Model #: 2539TZ.006
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 6 mm |
| End Shape | Square |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Application | | Finishing | |
| Depth of Cut Maximum (APMX) | 18 mm |
| Tool Type | TiNox-Cut 3xD |
| Overall Length (OAL) | 62 mm |
| Coolant Supply Property (CSP) | Coolant Thru |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.2362″ |
| Coating | TiAlN+TiN |
| Measurement Type | Metric |
| Flute Count (NOF) | 4 |
| Series/List # | 2539TZ |
| Shank Type | HB |
