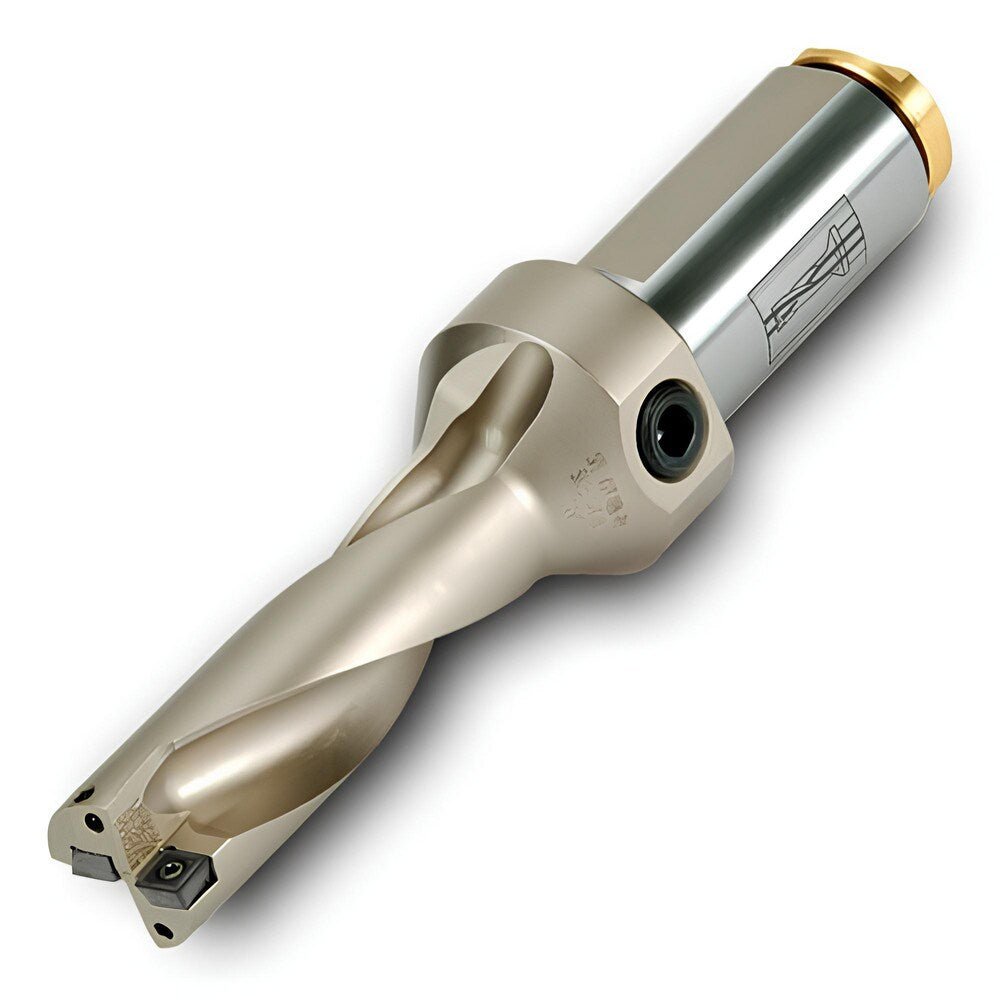

Brand: Ingersoll Cutting Tools / Part #: 6180759
Item #: 95949962
Brand: Ingersoll Cutting Tools
Model #: 6180759
Product Specifications
| Maximum Drill Depth | 3.9400 in |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Depth of Cut (Decimal Inch) | 3.9400 |
| Shank Type | Weldon Flat |
| Shank Diameter (Inch) | 1-1/4 |
| Cutting Direction | Right Hand |
| Drill Body Length to Flange (Decimal Inch) | 5.5900 |
| Toolholder Style | Q033 |
| Nose Diameter (Decimal Inch - 4 Decimals) | 1.3120 |
| Overall Length (Decimal Inch) | 7.9500 |
| Overall Length | 7.95 |
| Through Coolant | Yes |
| Series | Q |
| Flute Length (Decimal Inch) | 3.9400 |
| Shank Length (Decimal Inch) | 2.3600 |
| Primary Workpiece Material | Universal |
| Primary Workpiece Material Code | O |
| Flute Type | Slow Spiral |
| Maximum Cutting Diameter (Decimal Inch) | 1.3120 |
| Number Of Flutes | 2 |
| Coolant Through | Yes |
