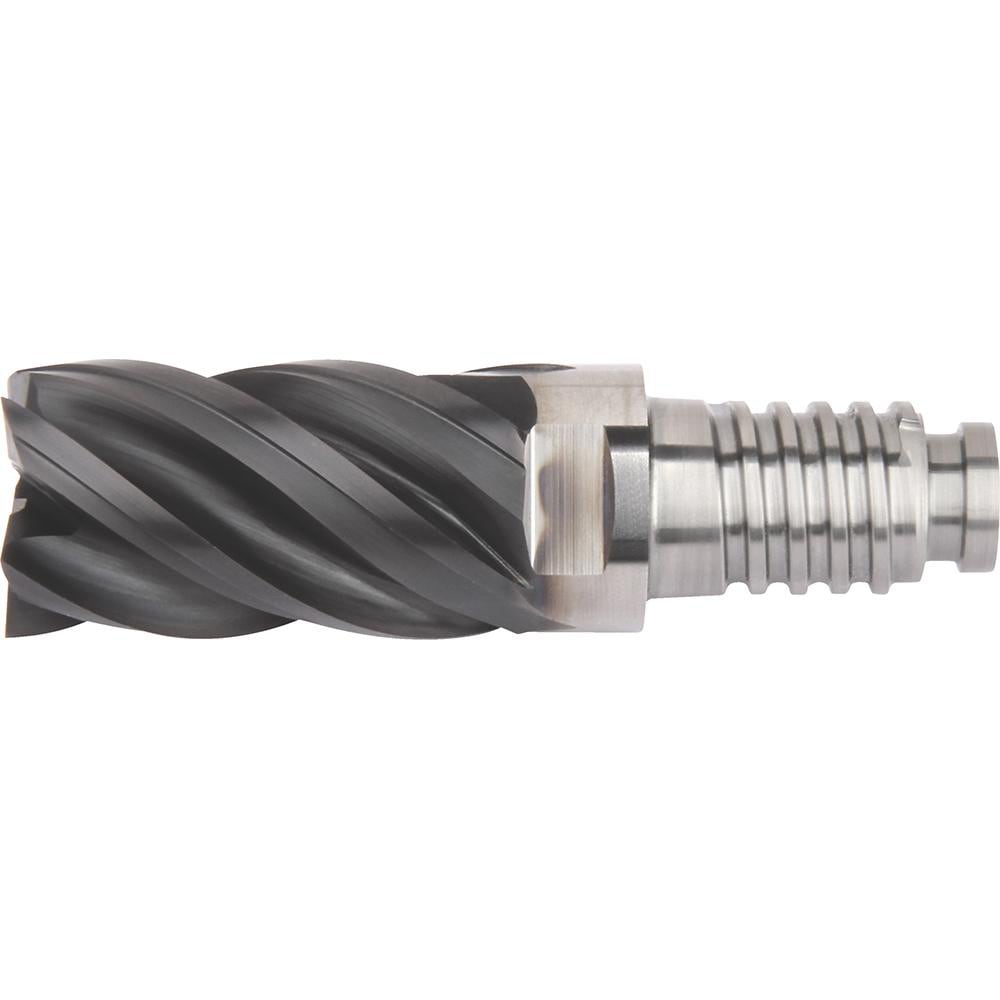

Brand: Widia / Part #: 6071661
Item #: 89835623
Brand: Widia
Model #: 6071661
Product Specifications
| Mill Diameter (Decimal Inch) | 0.6250 |
| Length of Cut (Inch) | 15/16 |
| Connection Type | Duo-Lock 16 |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Center Cutting | Center Cutting |
| Flute Type | Variable |
| Helix Angle | 38 |
| Helix Style | Medium |
| Material Grade | WP15PE |
| Maximum Helix Angle | 38 |
| Minimum Helix Angle | 38 |
| Series/List | 5VCC |
| Variable Helix | No |
| Mill Diameter (Fractional Inch) | 5/8 |
| Pitch | Normal |
| End Type | Square End |
| Length Type | Standard |
| Number Of Pieces | 1 |
| Shank Type | Screw-On |
| Extended Reach | No |
| Single Or Double End | Single |
| Manufacturers Grade | WP15PE |
| Material Application | Hard Material; Stainless Steel; Cast Iron; Steel |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.9375 |
| Variable Index | Yes |
| Manufacturers Catalog Number | 5VCC16SDL16 |
| Number Of Flutes | 5 |
| Finish Coating | AlTiN |
